Description

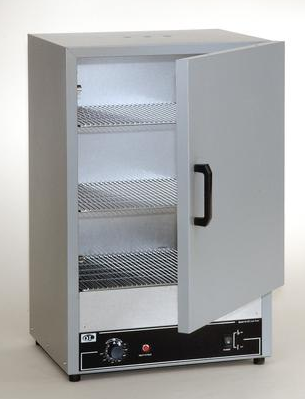

Quincy Lab® Oven, Gravity Convection, Analog, 3.0 cu. ft., 115 V, 60 Hz, 1600 Watts, 40GC
Features:
- 'GC', (gravity convection) and 'AF' (air forced) Lab Series Ovens series are designed to meet laboratory needs of industry, research organizations and schools
- Well crafted and versatile ovens for used for part drying, baking, curing, sterilizing, evaporating, heat treating, annealing, and testing, as well as many more applications
- Bi-metal thermostat (10 GC & AF Series only)
- Hydraulic thermostat
- Over-temperature safety feature
- Corrosion resistant aluminized interior
- 115 Volts & 230 Volts available
- Resistive-tubular incoloy heating elements
- 1 in. inch of high density mineral wool insulation
- Insulated Steel Doors with high impact thermoplastic handles
- 2 adjustable and 1 fixed nickel plated shelves
- Baked in scratch-resistant powder coated finish
- A circulating fan which provides air circulation for improved uniformity (AF Models only)
- Thermo safety alarm will shut unit off in event of runaway condition until oven is reset manually
Note:
- Not for use with flammable liquids or gases
Specifications
| Range | Temperature: Ambient +25 degrees F minimum to maximum of 450 degrees F (232 degrees C) |
|---|---|
| Capacity | 3 cu ft / 85 L |
| Material | Aluminized steel interior, nickel plated wire shelves, steel exterior |
| Power | 115 V, 60 Hz, 12.5 A, 1600 Watts |
| Accuracy | +/-3 degrees C |
| Other | Interior, W x H x D: 18 x 21.8 x 14 in. / 45.7 x 55.4 x 35.6 cm |
| Other | Shelves: 2 adjustable included, maximum 22 on 1 in centers, 35 lbs/shelf weight limit |
| Dimensions | Exterior, W x H x D: 20 x 31.5 x 16.3 in. / 50.8 x 80 x 41.4 cm |
| Weight | 91.5 lbs shipping / 72.5 lbs oven only |
| Manufacturer | Quincy Lab |
| Model No | 40GC |
| Warranty | 2 years parts & labor, 3 years heating element |
