Description

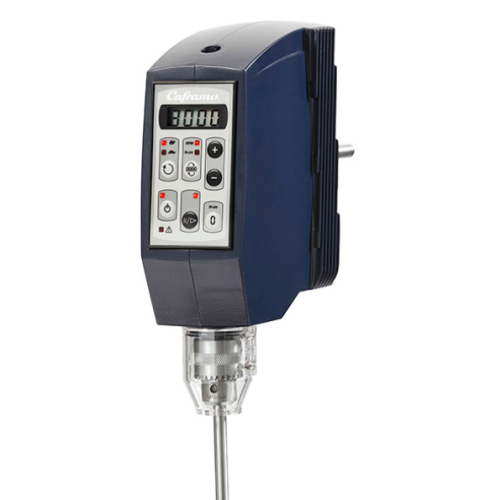

Caframo Limited® Overhead Stirrer, Universal High Speed / High Torque, 220 to 240 V, 50 to 60 Hz, BDC3030220U1
Features:
- Brushless DC motor
- Totally enclosed metal housing
- Electronic control
- Smart two-speed transmission
- Through shaft
- Chuck guard included
- High efficiency (less heat)
- Protection from dust and product splashing
- Precise speed adjustment and speed maintenance as viscosity changes
- Transmission selects high-torque or high-speed range
- Easy impeller adjustment saves time
- Safely encloses spinning chuck to protect user
- Protects chuck from splashes
Included:
- Overhead Stirrer
- Support rod
- Chuck
- Chuck key
- Chuck guard
- UK and EU cord sets
- Printed manual
Note:
- Stand, clamp and impeller must be ordered separately
Specifications:
| Volume Maximum | 60 L (15.5 US Gallons) |
| Viscosity Maximum | 50,000 mPas (50,000 cP) |
| Torque Maximum | 341 Ncm (30 in-lbs = 480 in-oz) |
| Output Power | 150 Watts (? hp) |
| Speed Display | Yes |
| Torque Display | Yes |
| Zero Torque | Yes |
| Timer | No |
| Through Shaft | Yes |
| Chuck Maximum Shaft Diameter | 10 mm (? in) |
| Chuck Guard | Yes |
| Rotation Direction | Clockwise only |
Specifications
| Range | Speed: 20 to 3000 rpm (Low: 20 to 600 rpm / High: 600 to 3000) |
|---|---|
| Range | Torque: Low Maximum: 341 Ncm (30 in-lbs = 480 in-oz) / High Maximum: 68 Ncm (6 in-lbs = 96 in-oz) |
| Material | Cast aluminum housing |
| Power | 220 to 240 volt / 50 to 60 Hz / Output: 150 Watts (1/5 hp) |
| Accuracy | Speed: +/- 1 rpm or +/- 1% of reading, Torque: +/-12 Ncm (+/- 1 in-lb) or +/- 5% of reading |
| Compliant/Standard | CSA listed to Canada and US standards |
| Operating Environment | 5 to 40 degrees C / 41 to 104 degrees F, 80% Relative Humidity |
| Weight | 5 kg / 11 lb |
| Manufacturer | Caframo Limited |
| Model No | BDC3030220U1 |
| Warranty | 3 years |
