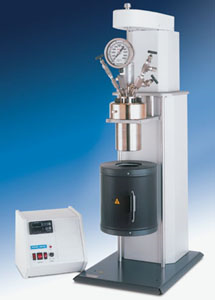

PAR-4540 Series High Pressure Reactors by Parr Instruments, 600-1200 mL, 5000 psi





The 4540 Series Reactors are specifically designed for users requiring a higher operating pressure.  These reactors have a maximum operating pressure of 5000psi (345bar) and a maximum operating temperature of 350 degree C.  The reactor can be fixed head or movable vessel and can be mounted on a bench top or floor stand.  This series of reactors has been designed with dimensions comparable to series 4520 and 4530, thus using the same support systems, stirrer drive and heater for general purpose applications.







Model Number	4544	4545	4546	4547
Sizes, mL	600	600	1200	1200
Max. Pressure	5000 psi (345 bar)
Max. Temperature
with FFKM 0-ring	NA
with PTFE Flat Gasket	350°C
Vessel Style	Movable	Fixed Head	Movable	Fixed Head
Reactor Mounting	Bench Top or Fixed Floor Stand, Moveable Floor Stand (Cart) Also Available
Closure (Cap Screws)	Split-Ring (8)
Valve Connections	1/4" Male NPT
Magnetic Stirrer, Model No.	A1120HC*
Maximum Torque	16 Inch-Pounds
Impeller(s), 6-Blade	2
Pressure Gage Size	4.5 inches
Range	0-7,500 psi (517 bar)*
Temperature Measurement	Thermowell
Cooling Coil	Included
Style	Single Loop
Bottom Drain Valve	A177VB
Heater Style	Calrod
Heater Power Watts	1500		2000
Stirrer Motor*	1/8 hp variable speed		1/4 hp variable speed
Electrical Supply
Volts	115 or 230
Maximum Load	16/8 amps
Vessel Dimensions
Inside Diameter	3.25 inches
Inside Depth,inches	4.7		9.8
Weight of Vessel, pounds	51		57
Reactor Dimensions
Width, inches w/o Controller	16.5		18
Depth, inches	23		23.5
Height, inches	33		75
Weight, pounds w/Controller	160		250
Spare Parts Kit	4549M





A composite identification number to be used when ordering a reactor can be developed by combining individual symbols from the separate sections.





Example A 600mL, T316SS, removable head reactor with magnetic drive, Flat Gasket, 115V explosion proof 1/4 hp motor, 3000 psi gage and programable controller with pressure display module would be listed as:
