Description

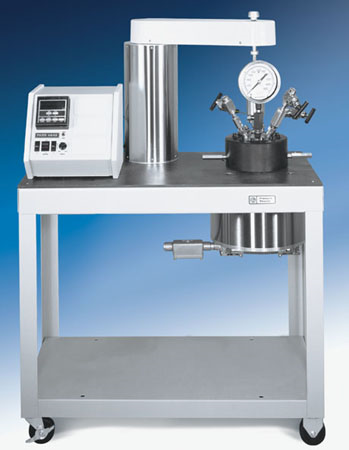

The 4570 and 4580 Series Reactors come in a variety of sizes with different mountings suitable for operating with pressures up to 5000psi (345bar), and temperatures up to 500 degree C. They can come with either fixed head or movable vessels and, depending on size, can be mounted on a bench top or a floor stand. These reactors have been designed with valves, fittings and vessels that can support high temperature and pressure ratings. Flexible graphite gaskets are used for temperatures up to 500 degree C, and PTFE gaskets for temperatures that will not exceed 350 degree C.
|
Model Number
|
4571
|
4572
|
4577
|
4578
|
||
|
Sizes, mL
|
1000
|
1800
|
1000
|
1800
|
||
|
Max. Pressure
|
5000 psi (350 bar)
|
|||||
|
Max. Temperature
|
||||||
|
with FG Flat Gasket
|
500 C
|
|||||
|
Vessel Style
|
Removable
|
Fixed Head
|
||||
|
Reactor Mounting
|
Floor Stand
|
|||||
|
Closure (Cap Screws)
|
Split-Ring (12)
|
|||||
|
Valve Connections
|
1/4" NPT Female
|
|||||
|
Magnetic Stirrer, Model No.
|
A1120HC*
|
|||||
|
Maximum Torque
|
16 Inch-Pounds
|
|||||
|
Impeller(s), 6-Blade
|
2
|
|||||
|
Pressure Gage Size
|
4.5 inches
|
|||||
|
Range
|
0-10,000 psi (700 bar)*
|
|||||
|
Temperature Measurement
|
Thermowell
|
|||||
|
Cooling Coil
|
Included
|
|||||
|
Style
|
Serpentine
|
|||||
|
Bottom Drain Valve
|
A177VB
|
|||||
|
Heater Style
|
Ceramic
|
|||||
|
Heater Power Watts
|
2250
|
|||||
|
Stirrer Motor
|
1/4 hp variable speed*
|
|||||
|
Electrical Supply
|
||||||
|
Volts
|
230
|
|||||
|
Maximum Load 115/230
|
16/11 amps
|
|||||
|
Vessel Dimensions
|
||||||
|
Inside Diameter
|
3.75 inches
|
|||||
|
Inside Depth,inches
|
6.2
|
10.5
|
6.2
|
10.5
|
||
|
Weight of Vessel, pounds
|
70
|
85
|
85
|
100
|
||
|
Reactor Dimensions
|
||||||
|
Width, w/o Controller
|
35 inches
|
|||||
|
Depth
|
18 inches
|
|||||
|
Height, inches
|
27
|
31
|
31
|
27
|
||
|
Weight, pounds w/Controller
|
245
|
265
|
265
|
285
|
||
|
Spare Parts Kit
|
4579B
|
|||||
|
Model Number
|
4575
|
4576
|
4575A
|
4576A
|
|
Sizes, mL
|
500
|
250
|
500
|
250
|
|
Maximum Pressure
|
5000 psi (345bar)
|
|||
|
Maximum Temperature
|
||||
|
with FG Flat Gasket
|
500 C
|
|||
|
Vessel Style
|
Moveable
|
Fixed Head
|
||
|
Reactor Mounting
|
Bench Top
|
|||
|
Closure (Cap Screws)
|
Split-Ring (8)
|
|||
|
Valves Mounted
|
Head
|
|||
|
Valve Connections
|
1/4" NPT Female
|
|||
|
Magnetic Stirrer, Model No.
|
A1120HC*
|
|||
|
Maximum Torque
|
16 Inch-Pounds
|
|||
|
Impeller(s), number (blades)
|
2 (6)
|
|||
|
Pressure Gage Size
|
4.5 inches
|
|||
|
Range
|
0-10,000 psi (700 bar)*
|
|||
|
Temperature Measurement
|
Thermowell
|
|||
|
Cooling Coil
|
Included
|
|||
|
Style
|
Single Loop
|
|||
|
Bottom Drain Valve
|
None
|
A177VB
|
||
|
Heater Style
|
Calrod
|
|||
|
Heater Power Watts
|
1500
|
|||
|
Stirrer Motor
|
1/8 hp variable speed*
|
|||
|
Electrical Supply
|
||||
|
Volts
|
115 or 230
|
|||
|
Maximum Load
|
14/7 amps
|
|||
|
Vessel Dimensions
|
||||
|
Inside Diameter, inches
|
2.5
|
|||
|
Inside Depth,inches
|
6.6
|
3.2
|
6.6
|
3.2
|
|
Weight of Vessel, pounds
|
35
|
29
|
37
|
31
|
|
Reactor Dimensions
|
||||
|
Width, inches w/o Controller
|
16
|
17
|
||
|
Depth, inches
|
16
|
24
|
||
|
Height, inches
|
30
|
44
|
||
|
Weight, pounds w/Controller
|
125
|
120
|
127
|
122
|
|
Spare Parts Kit
|
4579D
|
|||
|
Model Number
|
4581
|
4582
|
4583
|
4584
|
|
Sizes, mL
|
3750
|
5500
|
3750
|
5500
|
|
Maximum Pressure
|
3000 psi (200 bar)
|
|||
|
Maximum Temperature
|
||||
|
with FG Flat Gasket
|
500 C
|
|||
|
Vessel Style
|
Removable
|
Fixed Head
|
||
|
Reactor Mounting
|
Floor Stand
|
|||
|
Closure (Cap Screws)
|
Split-Ring (16)
|
|||
|
Valves Mounted
|
Head
|
|||
|
Valve Connections
|
1/4" NPT Female
|
|||
|
Magnetic Stirrer, Model No.
|
A1180HC*
|
|||
|
Maximum Torque
|
60 Inch-Pounds
|
|||
|
Impeller(s), number (blades)
|
2 (6)
|
|||
|
Pressure Gage Size
|
4.5 inches
|
|||
|
Range
|
0-5,000 psi (350 bar)*
|
|||
|
Temperature Measurement
|
Thermowell
|
|||
|
Cooling Coil
|
Included
|
|||
|
Style
|
Serpentine
|
|||
|
Bottom Drain Valve
|
A177VB
|
|||
|
Heater Style
|
Ceramic
|
|||
|
Heater Power Watts
|
3000
|
3500
|
3000
|
3500
|
|
Stirrer Motor
|
0.50 hp variable speed
|
|||
|
Electrical Supply
|
||||
|
Volts
|
230
|
|||
|
Maximum Load
|
20 amps, 230
|
|||
|
Vessel Dimensions
|
||||
|
Inside Diameter, inches
|
5.5 inches
|
|||
|
Inside Depth,inches
|
9.7
|
15
|
9.7
|
15
|
|
Weight of Vessel, pounds
|
100
|
130
|
120
|
160
|
