Description

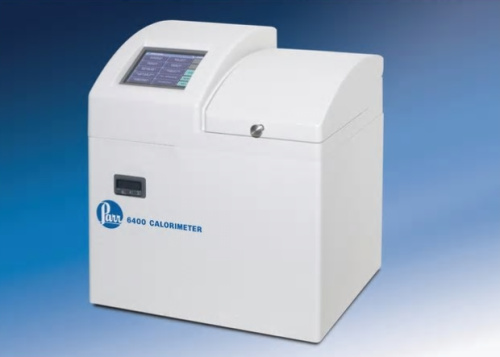

The 6400EA Automatic Isoperibol Oxygen Bomb Calorimeter is a highly automatic calorimeter which is designed to free the user from the manual operations required for traditional calorimeters, minimizing the operator time required per test. It is a self-contained unit, requiring minimum laboratory bench space, capable of performing 6-8 tests in an hour with a high level of precision and 5000-8000 calorie sample range. The 6420EA Expanded Calorimeter System includes: 6400EA Calorimeter, 1576 Rinse Tank, 1758 Printer, Extra 1138 Bomb Head Assembly, 6038 Bomb Maintenance Kit and 6409B 1yr service kit.
Features
- Fixed Parr 1138 Oxygen Combustion Bomb and bucket technology with removable head for fast sample loading
- Up to 4 units can be operated by one technician.
- Uses a closed loop thermoelectric cooling system attached to a one liter tank to provide water for the cooling system.
- Contains a water jacket providing smooth circulation of water
- Automatic charging and release of oxygen
- Automatic bomb washing which prolongs service life
- Automatic bucket filling
- High Speed-Performs 6-8 tests/hr
- Uses an external nitrogen pressurized tank to supply deionized rinse water to the unit.
- LCD screen features an intuitive graphical user interface for ease of operation and training
- Has the capacity to communicate with a wide variety of printers, analytical balances, and laboratory computers
- Updates via the internet
- A modern operating system (Linex) with communication and file management systems comparable to a PC
- Overall Size, 42cm.W x 46cm D x 51cm H
Supplied with
- Two special communications ports (RS232) for reporting to a printer, receiving sample weights from analytical balances and directional communications with a laboratory computer, plus and Ethernet connection for computer connections
- Removable compact flash memory card for simple program update.
- Model 6420EA Expanded Calorimeter System Components: 6400EA Calorimeter, 1576 Rinse Tank, 1758 Printer, Extra 1138 Bomb Head Assembly, 6038 Bomb Maintenance Kit and 6409B 1yr service kit.
Applications:
- Coal
- Foods
- Pet Food
- Waste
- Fuels and Alternative Fuels
- Refuse Disposal and Recycling
- and more
Additional Models
| 90-4060-05 | Model 6400EA , 115V |
| 90-4062-01 | Model 6200EA, 115V |
| 90-4062-02 | Model 6200EF, 230V |
| 90-4061-01 | Model 6100EF, 230V |
| 90-4061-02 | Model 6100EA, 115V |
| 90-4065-02 | Model 6725EA, 115V |
| 90-4060-06 | Model 6400EF, 230V |
| 90-4060-04 | Model 6400CLEA, 115V |
Parr Calorimeters are used for testing a variety of solid and liquid fuels, foodstuffs and other combustible materials. Many unique designs and highly automated instrumentation have been added to its expanding lines of fuel testing instruments. From adiabatic calorimeters through isoperibol calorimeters to automatic isoperibol calorimeters, Parr has always led the way.
Specifications
| Range | 5000-8000 calorie sample range |
|---|---|
| Range | 0.05% linearity across operating range |
| Range | 6-7 tests per hour |
| Capacity | ~1 gram sample size |
| Power | 115VAC/60Hz/1Ph |
| Application | Coal, food, waste, fuels and alternative fuels, refuse disposal, etc. |
| Accuracy | 0.1% precision class; 0.0001°C temperature resolution |
| Compliant/Standard | ASTM D5865 |
| Connectivity | SD memory card and TCP/IP network communications |
| Connectivity | USB port for balance and printer connections/updates via internet |
| Dimensions | W x D x H: 42cm x 46cm x 51cm (16.5"" x 18.1"" x 20"") |
| Manufacturer | Parr Instrument |
| Model No | 6400EA |
