Description

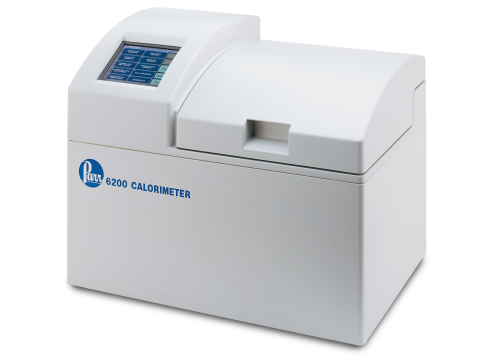

Model 6200 Isoperibol Calorimeter is a self-contained unit. It is recommended for coal mine, coal preparation plant, commercial inspection, coal burning utility, and other industrial laboratories where calorific tests of solid, liquid, or refuse-derived fuels are run on a routine basis. It is the updated version of Parr Models 1266, 1261, and 1241, intended for samples ranging from 0.6 to 1.2 g with a maximum energy release of 8000 calories per charge.
Features
- High speed, high precision, capable of performing up to 9 tests per hour
- Traditional removable Parr 1108CL oxygen bomb and bucket calorimeter; can be equipped with two bombs and two buckets for reloading while testing
- Temperature-controlled water jacket with built-in circulating system and an electric heater
- A bright, color touch screen display for data entry and operation controls with a graphical user interface for ease of operation and training
- Special communication ports for printer, computer, and network (LAN) connections
- Removable compact flash memory card slot for simple program updates and test report archiving
- Can incorporate a users current bombs, buckets, and accessories
- A semi-automatic system for charging the bomb with oxygen
- Can be set to provide options, menus, and messages in English, French, or German
- Overall Size, 22.5W x 15.5D x 17H
Supplied with
- 1108CL oxygen bomb & installation kit
- A391DD Oval Calorimeter Bucket
- A high precision electronic thermometer
Additional Models
| Catalog Number | Model/Volts |
| 90-4060-05 | Model 6400EA , 115V |
| 90-4062-01 | Model 6200EA, 115V |
| 90-4062-02 | Model 6200EF, 230V |
| 90-4061-01 | Model 6100EF, 230V |
| 90-4061-02 | Model 6100EA, 115V |
| 90-4065-02 | Model 6725EA, 115V |
| 90-4060-06 | Model 6400EF, 230V |
Parr Calorimeters are used for testing a variety of solid and liquid fuels, foodstuffs and other combustible materials. Many unique designs and highly automated instrumentation have been added to its expanding lines of fuel testing instruments. From adiabatic calorimeters through isoperibol calorimeters to automatic isoperibol calorimeters, Parr has always led the way.
Specifications
| Range | 5000-8000 calorie sample range |
|---|---|
| Range | 0.05% linearity across operating range |
| Range | 4-8 tests per hour |
| Capacity | ~1 gram sample size |
| Power | 115VAC/60Hz/1Ph |
| Application | Coal, food, waste, fuels and alternative fuels, refuse disposal, etc. |
| Accuracy | 0.05-0.1% precision class; 0.0001°C temperature resolution |
| Compliant/Standard | ASTM D5865 |
| Connectivity | SD memory card and TCP/IP network communications |
| Connectivity | USB port for balance and printer connections |
| Dimensions | W x D x H: 57cm x 40cm x 43cm |
| Manufacturer | Parr Instrument |
| Model No | 6200EACL |
