Description

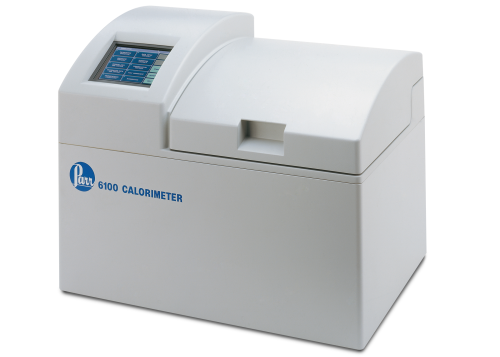

The 6100 Calorimeter is intended for the user who wants a modern calorimeter with the convenient automatic features provided in the 6200 Calorimeter and whose precision requirements can be met with a static system without isoperibol control. Or, for users whose workload is small or intermittent, making it preferable to purchase a lower cost model. All steps in the test procedure are managed by a microprocessor control system programmed to operate the calorimeter in either the conventional equilibrium mode or in a faster dynamic mode. All data is handled automatically by a dedicated microcomputer
Features
- A built-in semi-automatic system for charging the bomb with oxygen.
- A high precision electronic thermometer.
- A bright, color, touch screen display for data entry and operation control.
- Special communication ports for printer, computer and network (LAN) connections.
- Removable compact flash memory card slot for simple program updates and test report archiving.
- A moderately priced calorimeter for users who do not require the highest attainable precision.
- A traditional design calorimeter with removable oxygen bomb and bucket.
- A high speed calorimeter capable of performing up to 9 tests per hour when equipped with two bombs and buckets.
- A modern intuitive graphical user interface for ease of operation and training.
Supplied with
- Calorimeter module with built-in calorimeter controller.
- 1108 High-Strength Oxygen Bomb for use up to 12000 calories/charge and oxygen charging pressures up to 45 atm.
- Oval Bucket.
- Accessories for installation.
Additional Models
| 90-4060-05 | Model 6400EA , 115V |
| 90-4062-01 | Model 6200EA, 115V |
| 90-4062-02 | Model 6200EF, 230V |
| 90-4061-01 | Model 6100EF, 230V |
| 90-4061-02 | Model 6100EA, 115V |
| 90-4065-02 | Model 6725EA, 115V |
| 90-4060-06 | Model 6400EF, 230V |
| 90-4060-04 | Model 6400CLEA, 115V |
Parr Calorimeters are used for testing a variety of solid and liquid fuels, foodstuffs and other combustible materials. Many unique designs and highly automated instrumentation have been added to its expanding lines of fuel testing instruments. From adiabatic calorimeters through isoperibol calorimeters to automatic isoperibol calorimeters, Parr has always led the way.
Specifications
| Range | 5000-8000 calorie sample range |
|---|---|
| Range | 0.05% linearity across operating range |
| Range | 4-8 tests per hour |
| Capacity | ~1 gram sample size |
| Power | 115VAC/60Hz/1Ph |
| Application | Coal, food, waste, fuels and alternative fuels, refuse disposal, etc. |
| Accuracy | 0.1-0.2% precision class; 0.0001°C temperature resolution |
| Compliant/Standard | Continuously Compensated |
| Connectivity | SD memory card for simple program changes |
| Connectivity | USB port for balance and printer connections, TCP/IP via Ethernet |
| Dimensions | W x D x H: 57cm x 40cm x 43cm |
| Manufacturer | Parr Instrument |
| Model No | 6100EA |
