Description

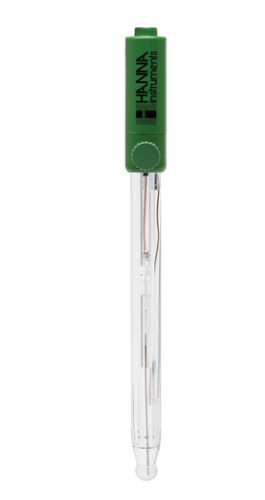

Hanna Instruments® pH electrode, Combination, Glass Body, Refillable, with Double Junction, BNC Connection + Pin, HI1043P
Features:
- Glass body, refillable, double junction pH electrode with a BNC and pin connector
- Pin connector used to enable the CAL Check function of the HI2221, HI2222, and HI2223 benchtop meters
- Electrode has a single ceramic junction in the outer reference cell and the pH sensing portion is made with high temperature glass
Applications:
- Hydrocabon
- Paints
- Solvents
- Sea water
- Strong acids and bases
- High conductivity Samples
- Tris buffer
- High temperature samples
Specifications:
| Reference | double, Ag/AgCl |
| Junction/Flow Rate | ceramic, single / 15-20 µL/h |
| Electrolyte | KCl 3.5M |
| Max Pressure | 0.1 bar |
| Range | pH: 0 to 14 |
|
Recommended Operating Temp. |
30 to 85 °C (86 to 185 °F) |
| Tip/Shape | spheric (diameter: 9.5 mm) |
|
Temperature Sensor |
no |
| Amplifier | no |
| Body Material | glass |
| Cable | coaxial; 1 m (3.3 ft) |
| Connection | BNC + pin |
