Description

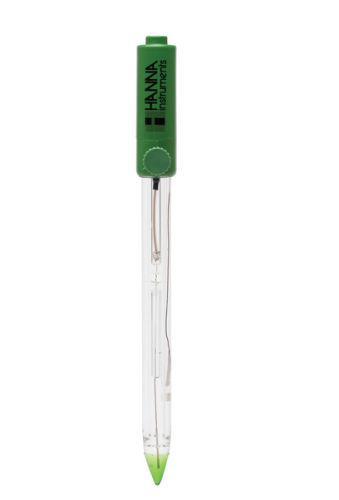

Hanna Instruments® pH Electrode, Combination Glass, Refillable, Double Junction, with Glass Body, Conical Tip & BNC + pin Connector, HI1053P
Features:
- Glass body, refillable, double junction pH electrode with a BNC and pin connector
- Pin connector is used to enable the CAL Check function of the HI2221, HI2222, and HI2223 benchtop meters
- Triple ceramic junction in outer reference cell and conical pH sensing portion is made with low temperature glass
- This design consideration is ideal for emulsions, fats and creams, soil and semi-solid samples, low conductivity solutions, and for measuring samples at cooler temperatures
Specifications:
| Reference | single, Ag/AgCl |
| Junction/Flow Rate | ceramic, triple / 40-50 µL/h |
| Electrolyte | KCl 3.5M + AgCl |
| Max Pressure | 0.1 bar |
| RecommendedOperating Temp. | -5 to 30°C (23 to 86°F) |
| Tip/Shape | conic (12 x 12 mm) |
| Temperature Sensor | no |
| Amplifier | no |
| Body Material | glass |
| Cable | coaxial; 1 m (3.3’) |
| Connection | BNC + pin |
Specifications
| Range | pH: 0 to 12 |
|---|---|
| Application | pH in food industries |
| Manufacturer | Hanna Instruments |
| Model No | HI1053P |
