Description

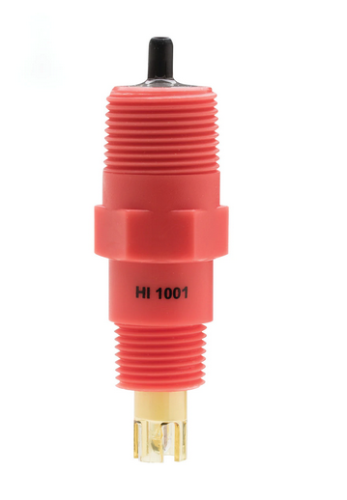

Hanna Instruments pH Electrode for Process Control and Monitoring, HI1001
Features:
- Flow-thru monitoring pH electrode
- BNC connector
- Durable PVDF body which is resistant to most chemicals, solvents, abrasion, fungal growth, ultraviolet, and nuclear radiation
- 1/2 NPT threads for in-line mounting in standard T on front end and 3/4 threads on the back end that allows submersion mounting
- Spherical glass bulb permits faster response time and higher stability due to wide area of contact with sample and is protected by mechanical stress by a PEI sleeve
- PTFE junction with polymer electrolyte which offers chemical advantages which makes it a widely used junction type for industrial applications because of its hydrophobic properties that resist clogging
- Double junction electrode with an internal compartment sounding the Ag/AgCl reference wire — silver ions are present in the internal compartment electrolyte but the external compartment is silver-free so that there is no sample contamination that can cause undersirable effects or formation of silver precipitates on the junction
Specifications:
| Junction | Double, PTFE |
| Electrolyte | Polymer |
| Maximum Pressure | 6 bar (87 psi) |
| Temperature Range | -5 tp 80 °C (HT) |
| Cable Length | 3 m (9.8') |
| Probe Length | 86 mm (3.4") |
| Connector | BNC |
| Warranty | 6 months |
