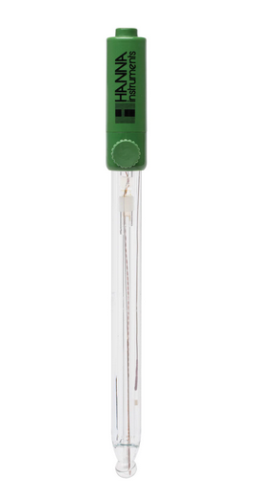

The Hanna HI 11310 is a glass-body pH electrode with a built-in temperature sensor. It is a refillable electrode with a single ceramic, double junction, and a 3.5 mm connector. It is recommended for general purpose laboratory use.The Hanna HI 11310 is a digital Smart electrode designed for use with the edge® meter. It has a built-in microchip that stores sensor type, ID, and calibration information that is automatically retrieved by edge® when the electrode is connected. Stored pH calibration information includes: calibrated buffers, date, time, offset and slope characteristics of the electrode. Conductivity calibration information includes: calibrated conductivity standards, date, time, and cell constant of the sensor. Dissolved oxygen calibration information includes: standards used for calibration, date, time, altitude and salinity correction.
| Description |
refillable, combination, digital pH electrode |
| Reference |
double, Ag/AgCl |
| Junction / Flow Rate |
ceramic, single / 15-20 µL/h |
| Electrolyte |
KCl 3.5M |
| Max Pressure |
0.1 bar |
| Range |
pH: 0 to 14 |
| Recommended Operating Temperature |
-5 to 100°C (23 to 212°F) - HT |
| Tip / Shape |
spheric (dia: 9.5 mm) |
| Temperature Sensor |
yes |
| Matching Pin |
no |
| Amplifier |
yes |
| Body Material |
glass |
| Cable |
1 m (3.3’) |
| Recommended Use |
laboratory general purpose, beer |
| Connection |
3.5 mm connector |
