Description

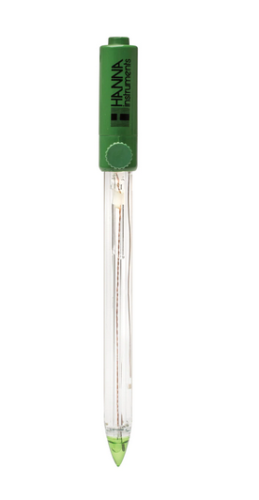

Hanna Instruments® pH Electrode for Edge Tablet Meters, with Smart Chip, Built-in Temperature Sensor, Low-Temperature Glass, Triple Ceramic, Single Junction, Refillable, 3.5 mm, 1 m Cable, Semi-Solids and Emulsions, HI10530
Features:
- Low-temperature, glass-body pH electrode with a built-in temperature sensor
- Refillable electrode with a triple ceramic, single junction, a conical tip, and a 3.5 mm connector
- Recommended for fats and creams and soil samples
- Digital Smart electrode designed for use with the edge® meter
- Built-in microchip stores sensor type, ID, and calibration information that is automatically retrieved by edge® when electrode is connected
- Stored pH calibration information includes: calibrated buffers, date, time, offset and slope characteristics of electrode
Specifications:
| Description | refillable, combination, digital pH electrode with conical tip |
| Reference | double, Ag/AgCl |
| Junction / Flow Rate | ceramic, triple / 40-50 µL/h |
| Electrolyte | KCl 3.5 M |
| Max Pressure | 0.1 bar |
| Range | pH: 0 to 12 |
| Recommended Operating Temperature | -5 to 70 °C (23 to 158 °F) - LT |
| Tip / Shape | conic (12 x 12 mm) |
| Temperature Sensor | yes |
| Matching Pin | no |
| Amplifier | yes |
| Body Material | glass |
| Cable | 1 m (3.3 ft.) |
| Recommended Use | fats and creams, high purity water, soil samples, potable water, semi-solid products, low conductivity solutions, emulsions |
| Connection | 3.5 mm connector H |
