Description

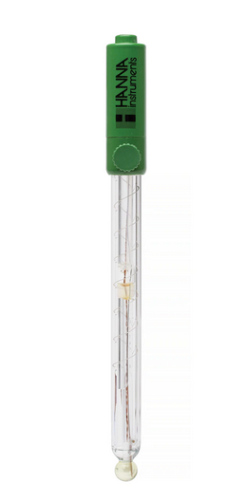

The HI 1615D is a single junction, glass body, refillable pH electrode for general laboratory use.
Recommended use with:
- HI 98140
- HI 98150
- HI 98230
- HI 98240
Specifications:
| Reference | single, Ag/AgCl |
| Junction/Flow Rate | ceramic, single |
| Electrolyte | KCl 3.5M + AgCl |
| Max Pressure | 0.1 bar |
| Range | pH: 0 to 13 |
|
Recommended Operating Temp. |
20 to 40°C (68 to 104°F) |
| Tip/Shape | spheric (dia: 9.5 mm) |
| Temperature Sensor | yes |
| Amplifier | yes |
| Body Material | glass |
| Cable | 7-pole; 1 m (3.3') |
| Connection | 7-pin DIN |
