Description

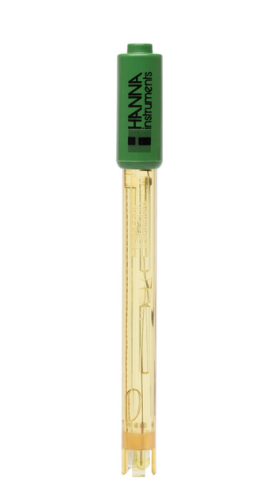

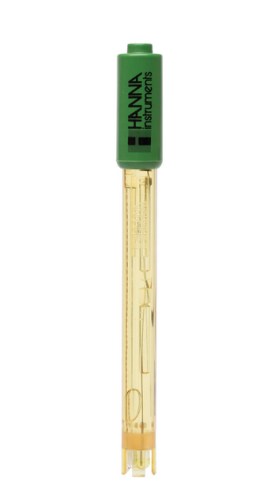

HI 1217D is a single-junction, gel-filled, Epoxy body general-purpose pH electrode, with a DIN connector. It is pre-amplified and has a built-in temperature sensor for automatic temperature compensation.
Specifications:
| Reference | single, Ag/AgCl |
| Junction/Flow Rate | ceramic, single |
| Electrolyte | gel |
| Max Pressure | 2 bar |
| Range | pH: 0 to 13 |
| RecommendedOperating Temp. | 20 to 40°C (68 to 104°F) |
| Tip/Shape | spheric (dia: 5.0 mm) |
| Temperature Sensor | yes |
| Amplifier | yes |
| Body Material | PEI |
| Cable | 5-pole; 1 m (3.3’) |
| Connection | DIN |
