Description
Thermo Scientific™ Orion™ Star™ A324 pH/ISE Multiparameter Meter Kit, Electrode, Solutions, Armor and Case, STARA3245
Features:
- Measure pH, ion concentration, mV, relative mV or ORP with temperature
- Expect high accuracy and premium performance in most demanding locations with waterproof, multiparameter meter with IP67-rated housing
- Designed for wide range of pH, ion concentration, mV, ORP and temperature testing and field applications
- Perform up to 5 point pH calibrations with automatic buffer recognitionof NIST or DIN buffer groups with choice to manually enter custom buffer values and up to a 5 point ISE (Ion Selective Electrode) calibration with selectable units of ppm, M, mg/L, %, ppb or none
- Calibration editing option allows individual points to be fixed without full recalibration
- Log up to 5000 data point sets with time/date stamp with sample and user ID options and easily transfer calibration and high/low alarm data logs via USB or RS232 to a printer or computer with free downloadable Orion Star™ Com software
- Information-rich, easy-to-read backlit graphic display with clear onscreen instructions enables user-friendly operation
- Advanced ISE features include non-linear selectable auto-blank and low range stability
- Supports wide variety of Orion™ ion selective electrodes including electrodes that measure ammonia, ammonium, bromide, cadmium, calcium, carbon dioxide, chloride, chlorine, cupric, cyanide, fluoride, fluoroborate, iodide, lead, nitrate, potassium, silver, sodium, sulfate, surfactant and thiocyanate concentrations
- Capture your critical readings with measurement stability indicator and selectable read modes — Auto-Read holds a stable reading, Continuous shows changing readings with hold option and Timed logs data at specific intervals
- Calibration log stores 10 most recent calibrations
- Non-volatile meter memory ensures your data and settings are protected, even with loss of power
- Orion Star Com software facilitates data transfer to a computer via USB or RS232 connections
- Flexible power options with AA batteries or optional universal power adapter
Included:

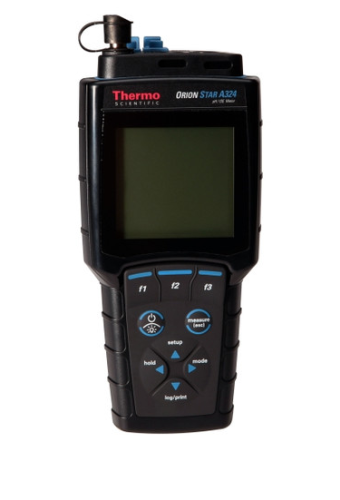

- Star A324 pH/ISE meter
- 91-2661-53 (Orion 8107UWMMD) Ultra Triode gel-filled epoxy-body pH/ATC electrode, 3 m cable
- 21-2112-04 (Orion 910410-WA) pH 4.01 Buffer pouches, 10
- 21-2112-07 (Orion 910710) pH 7.00 Buffer pouches, 10
- 21-2112-10 (Orion 911010) pH 10.01 Buffer pouches, 10
- 91-2668-06 (Orion 810001) ROSS electrode storage solution
- 21-2112-21 (Orion 911110) Electrode rinse solution pouches
- 91-2639-63 (Orion STARA-AR) Protective armor with electrode holder and storage sleeve
- 91-2639-60 (STARA-CS)Hard-sided field case
- Four AA batteries (installed)
- Printed quick start guide and literature CD
- USB computer cable
Specifications:
| Advanced ISE Functions | Segmented (point-to-point) slope, non-linear selectable auto-blank, low concentration range stabilit |
| Alarm Output | High/low limit alarm, calibration due alarm |
| Backlight Option | Yes, selectable |
| Battery Life | 800 hr. |
| Calibration | pH with calibration editing option, ion concentration (ISE) with calibration editing option, relativ |
| Calibration Points | 1 point relative mV (RmV) mode, 1 point ORP mode |
| Calibration Points (ISE) | 1 to 5 |
| Calibration Points (pH) | 1 to 5 |
| Data Management Details | Transfer single, range or all data points to printer or computer |
| Data Points | 5000 with date and time stamp |
| Channels | 1 |
| Display Type | LCD Graphic, Backlit |
| IP Rating | IP 67 |
| Measurement Modes | pH, mV, relative mV (RmV), ORP or ion concentration (ISE) with temperature |
| Resolution (ISE) | 0.0001 minimum, 1 to 3 significant digits (user selectable) |
| Resolution (pH) | 0.1/0.01/0.001 |
| Isopotential Point | 7.000 pH |
| Keypad | Comprehensive with menu-specific function keys and dual purpose scroll/shortcut keys |
| Languages | English, Spanish, French, Italian, German and Chinese; Portuguese and Korean available with software update |
| Log Function Type | Automatic data logging with Auto-Read and Timed measure modes; manual data logging with Continuous m |
| Memory | Non-volatile memory preserves data log, calibration log and meter settings |
| Methods | 10 per channel with password protection |
| Probe Type | pH electrode, ORP electrode, ion selective electrode (ISE), reference half-cell electrode, ATC temperature probe (includes 8107UWMMD ROSS Ultra™ Triode pH/ATC electrode) |
| Resolution (mV) | 0.1 mV |
| Stability | Selectable fast, medium, slow or Smart Stability setting; Selectable off or Automatic Smart averaging setting |
| Temperature Accuracy | ±0.1 °C |
| Temperature Probe Calibration | 1 point temperature offset calibration |
| Temperature Resolution | 0.1 °C, 0.1 °F |
| Temperature Selection | Manual or automatic with ATC temperature probe |
Specifications
| Range | pH: -2.000 to 20.000 |
|---|---|
| Range | mV, Relative mV and ORP: ±2000.0 mV |
| Range | ISE: 0.0001 to 19900 with selectable units of ppm, Molar, mg/L, %, ppb or none |
| Range | Temperature: -5.0 degrees C to +105.0 degrees C (22.0 degrees F to 221.0 degrees F) |
| Power | 4 AA (included) or Universal 50-60 Hz, 100-240 VAC power adapter (sold separately) |
| Accuracy | pH: +/-0.002; mV, ORP, ISE: +/-0.2 mV or +/-0.05% of reading whichever is greater |
| Compliant/Standard | CE, TUV 3-in-1 and FCC Class A certifications |
| Operating Environment | Ambient: 5 degrees C to 45 degrees C (41 degrees F to 113 degrees F) Relative Humidity: 5 to 85 %, non-condensing |
| Connectivity | Inputs: BNC (pH, ORP or ion selective electrode), pin-tip (reference electrode), 8 pin MiniDIN (ATC temperature probe) |
| Connectivity | Outputs: USB, RS232 |
| Dimensions | L x W x H: 24 cm x 10 cm x 6.5 cm (9.5 in. x 3.9 in. x 2.6 in.) |
| Weight | 0.5 kg (1.2 lb) |
| Manufacturer | Thermo Scientific Orion |
| Model No | STARA3245 |
| Warranty | 3-year replacement warranty |
