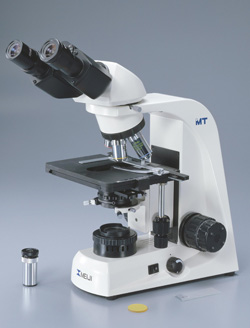

PH MICRO Asbestos Phase Binocular Microscope, 4X Achromat, 10X & 40X Phase [REPRESENTATIVE IMAGE]

Meiji Techno America® PH MICRO Asbestos Phase Binocular Microscope, 4X Achromat, 10X & 40X Phase

Features:

• For NIOSH 7400 and SHA ID 160 reference methods
• Objective Lenses: DIN Infinity Corrected brightfield U. Plan 4x, U. Plan 10x and U. Plan Positive Phase Contrast 40x objectives mounted in quintuple nosepiece
• Eyepieces: Siedentopf trinocular head with HWF10x DIN standard compensating eyepiece (FN 20) and HWF10x focusing eyepiece with Walton & Beckett reticle (type G-22 with 3:1 aspect ratio), FN 20. Interpupillary adjustment from 53mm to 75mm. Graduated diopter on left eyetube—Inclined at 30 degrees. Trinocular head allows camera integration and includes sliding 80/20 beam splitter
• Total Magnification: 40x, 100x, 400x
• Specimen Stage: Ceramic coated flat top mechanical X-Y stage measures 171 mm x 115 mm and travels 78 mm(X) x 52 mm(Y)— Attached finger assembly and ergonomically positioned coaxial drop-down controls—includes stage micrometer 1 mm divided into 100 units (each division = 0.01 mm)
• Focusing: Coaxial coarse and fine focus adjustment with graduation reading 2 microns per division, fitted with tension adjustment and safety auto focus stop
• Illumination: Built-in Koehler illuminator with 6v 30w halogen lamp, including variable intensity control
• Phase Contrast: Includes centering telescope
• Light Focusing: Abbe condenser NA 1.25 with iris, centerable 20x and 40x positive phase annulus, and dovetail mount
• Representative Image-Actual product may differ
