Description

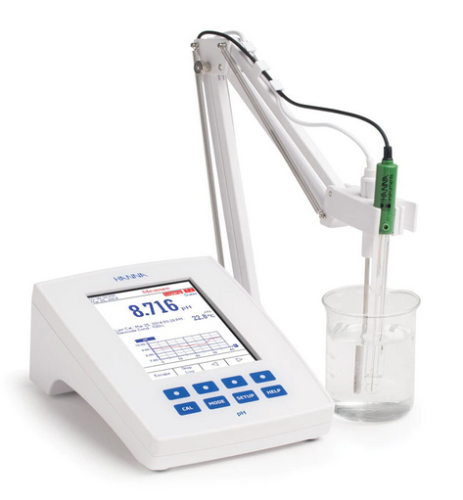

Hanna® Laboratory Research Grade Benchtop pH/mV Meter with pH Electrode and Temperature Probe, 0.001 pH Resolution
Features:
- Highly customizable user interface—includes showing measurements in various modes with or without GLP information, real-time graphing, logging data, adjustable calibration stability criteria (fast, moderate, and accurate), programmable alarm limits (inside or outside)
- Color graphic LCD—on-screen help, graphic and custom color configurations, real-time graphing, virtual keys for intuitive user interface
- Built in barometer—provides pressure compensation for all DO measurements via built-in pressure transducer (can be calibrate to a single point)
- Capacitive touch—sensitive touch buttons for accurate keystrokes while navigating menus and screens; four dedicated keys for routine operations including calibration and switching modes plus four virtual keys that change based on use; no worry of clogged buttons
- Choice of calibration—automatic buffer recognition, semiautomatic, and direct manual entry pH calibration options available for calibrating up to 5 points from a selection of 8 standard buffers and up to 5 custom buffers
- GLP Data—user can view calibration data and calibration expiration at touch of a key; includes date, time, buffer/standards used, and slope characteristcs; offset for pH electrodes also displayed
- CAL Check™—alerts user to potential problems during calibration of pH electrode; indicators include Electrode Dirty/Broken, Buffer Contaminated, electrode response time and overall probe condition as a percentage based on offset and slope
- Data logging—automatic, manual, and auto-hold logging (up to 100 lots with 50,000 records maximum/lot, with up to 100,000 total data points) ; automatic logging features option to save data according to sampling period and interval
- Data transfer—transfer data to PC via USB cable and HI92000 software (sold separately)
- Contextual help—dedicated Help key provides clear tutorial messages and on-screen directions to guide users through set-up and calibration; information displayed relative to setting or option being viewed
- Warranty—2 years for meter; 6 months for probes
Supplied with:
- HI1131B pH electrode (91-2698-24)
- HI7662-T temperature probe (91-5990-12)
- HI76404W electrode holder
- HI70004P pH 4.01 buffer solution sachet (91-2704-04)
- HI70007P pH 7.01 buffer solution sachet (91-2704-07)
- HI70000P electrode cleaning solution sachet (2) (91-2704-11)
- HI7082 3.5M KCl electrolyte solution (30 mL) (91-2599-79)
- 12 VDC adapter
- Instruction Manual
Specifications:
| pH | Range |
- 2.0 to 20.0 pH; - 2.00 to 20.00 pH; - 2.000 to 20.000 pH |
| Resolution | 0.1; 0.01; 0.001 pH |
|
| Accuracy @ 25 °C (77 °F) |
± 0.1 pH; ± 0.01 pH; ± 0.002 pH ± 1 LSD |
|
| Calibration | Automatic, up to five point calibration, eight standard buffers available (1.68, 3.00, 4.01, 6.86, 7.01, 9.18, 10.01, 12.45) and five custom buffers |
|
| Temperature compensation | Automatic or manual from - 20 to 120.0 °C | |
| mV | Range | ± 2000 mV |
| Resolution | 0.1 mV |
|
| Accuracy | ± 0.2 mV ± 1 LSD |
|
| Relative offset range | ± 2000 mV | |
| Temperature | Range | - 20.0 to 120 °C; - 4.0 to 248 °F; 253.15 to 393.1 K |
| Resolution | 0.1 °C; 0.1 °F; 0.1 K | |
| Accuracy | ± 0.2 °C; ± 0.4 °F; ± 0.2 K |
|
|
Additional Specifications |
Electrode/Probe | HI1131B glass body pH electrode with BNC connector and 1 m (3.3') cable (included) |
| Temperature probe |
HI7662-T stainless steel temperature probe with 1 m (3.3') cable (included) |
|
| GLP | Calibration data including date, time, buffers used, offset, and slope | |
| Logging |
100,000 records storage, 100 lots with 50,000 records/lot; Interval: settlable between 1 second and 180 minutes maximum log time; Type: automatic, manual, AutoHold |
|
| Input channels | 1 - pH/ORP | |
| Environment | 0 to 50 °C (32 to 122 °F; 273 to 323 K); Relative Humidity Maximum 95% non-condensing |
|
| PC connectvity | USB | |
| Display | Color graphic LCD with on-screen help, graphing, and custom color configuation |
|
| Power supply | 12 VDC adapter (included) | |
| Dimensions | 160 x 231 x 94 mm (6.3 x 9.1 x 3.7") | |
| Weight | 1.2 kg (2.64 lbs.) |
