Description
Features:
- Pre-amplified pH electrode
- Easy manual one or two point calibration
- Automatic Temperature Compensation
- Low battery indicator

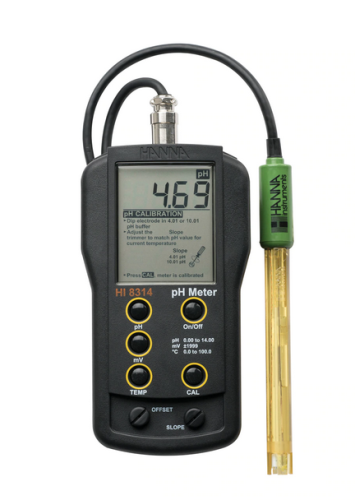

The handheld HI 8314 is designed to be a reliable and easy-to-use pH/mV/Temperature meter. It uses the HI 1217D pre-amplified pH electrode and internal temperature sensor. The single reference, Ag/AgCl gel-filled PEI electrode has a ceramic junction and is equipped with a 1 m cable with a DIN connector.
The manual calibration procedure is very simple with clear help messages on the LCD display and is performed at one or two points by adjusting the trimmers on the front panel. This instrument is ideal for applications that require a custom calibration point. Manual calibration can be extremely useful in order to achieve better accuracy.
There are several other features that make this instrument easy to operate. The pH, mV and temperature ranges are easily selected using the rubber keyboard on the front panel. The built-in temperature sensor in the pH electrode allows automatic temperature compensation of pH readings. A low battery indicator alerts the user when the battery needs to be replaced.
The meter is powered by a 9V battery (included).
Specifications:
| Range | pH | 0.00 to 14.00 pH |
| ORP | ±1999 mV | |
| Temperature | 0.0 to 100.0°C | |
| Resolution | pH | 0.01 pH |
| ORP | 1 mV | |
| Temperature | 0.1°C | |
| Accuracy | pH | ±0.01 pH |
| ORP | ±1 mV | |
| Temperature | ±0.4°C (excluding probe error) | |
| pH Calibration | manual, two point, through trimmers (offset ±1 pH; slope: 80 to 110%) | |
| Temperature Compensation | Automatic, 0 to 70°C (32 to 158°F) | |
| Probe | HI 1217D PEI body, pre-amplified pH electrode with internal temperature sensor, DIN connector and 1 m cable (included) | |
| Input Impedance | 1012 Ohm | |
| Battery Type / Life | 9V / approximately 100 hours of continuous use | |
| Environment | 0 to 50°C (32 to 122°F); RH max 100% | |
| Dimensions | 145 x 80 x 36 mm (5.7 x 3.1 x 1.4’’) | |
| Weight | 230 g (8.1 oz.) |
Supplied with:
- Meter
- HI 1217D pH electrode
- HI 70004 pH 4.01 buffer solution sachet
- HI 70007 pH 7.01 buffer solution sachet
- HI 700661 electrode cleaning solution sachets (2)
- Calibration screwdriver
- Battery
- Protective Case
- Instructions
