Description

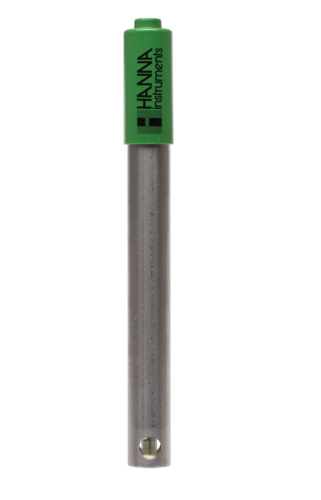

Hanna Instruments Titanium Body pH/ORP Electrode for Water Treatment Analysis with Quick Connect DIN Connector, Single Junction, 1 m Cable, HI1297D
Features:
- General purpose electrode made with a titanium body, gel filled, and with a single reference junction
- Built-in temperature sensor
- Quick connect DIN connector
- Spherical glass bulb is made of general purpose glass and has a resistance of 100 megaohms at 25 °C
- Titanium body is corrosive resistant (even in sea water) and has an increased immunity to both electrostatic and magnetic fields; titanium casing acts as a matching pin to eliminate ground loops and common mode perturbations for the measurement system
- Extendable cloth-type junction is renewable — pulls out for a fresh, uncontaminated surface
Specifications:
| Reference | Single, Ag/AgCl |
| Junction/Flow Rate | Cloth |
| Electrolyte | Gel |
| Max Pressure | 3.0 bar |
| Range | pH: 0 to 13; ORP |
| RecommendedOperating Temp. | 0 to 80°C (32 to 176°F) — General Purpose |
| Tip/Shape | pH: conic (3 mm); ORP: platinum sensor |
| Temperature Sensor | Yes |
| Diameter | 14 mm |
| Body Length/Overall Length | 105 mm / 145.5 mm |
| Amplifier | Yes |
| Matching Pin | Yes |
| Digital | No |
| Body Material | Titanium |
| Cable | 7-pole; 1 m (3.3') |
| Connection | DIN |
| Applications | Municipal water, swimming pools, industrial wastewater, water treatment |
| Warranty | 6 months |
Recommended for use with:
- 90-2618-01(HI 8314)
- 21-2665-10 (HI991001)
- 21-2665-11(HI 991003)
