Description

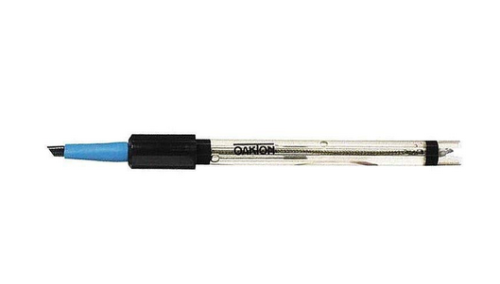

Cole-Parmer® Oakton® Single-Junction, Epoxy-Body, Gel-Filled, Waterproof pH/ATC "All-in-One" Electrode, WD-35808-71
Features:
- Built-in temperature sensor allows automatic temperature compensation for accurate pH readings
- The single junction is ideal for field measurements, clean water and general purpose applications
- Use with Oakton® pH 150, pH 450, pH 300/310, pH/CON 300 and pH/CON 510 and other meters that accept BNC + 6-pin connectors
Specifications:
| Electrode Type | Single Junction |
| Body Material | Epoxy |
| Reference Junction | Gel-Filled |
| pH Range | 0 to 12 pH |
| Temperature Range | 0 to 80 degrees C (32 to 176 degrees F) |
| Temperature Compensation | Built-in |
| ATC Connector | 6-Pin Waterproof |
| pH Connector | BNC |
| Electrode Diameter | 12 mm |
| Cable Length | 3 ft. |
Specifications
| Range | pH range: 0 to 12 |
|---|---|
| Range | Temperature range: 0 to 80 degrees C (32 to 176 degrees F) |
| Material | Gel-filled epoxy |
| Connectivity | Input: 6-Pin Waterproof for Automatic Temperature Compensation and BNC for pH |
| Dimensions | 12 mm diameter |
| Manufacturer | Cole-Parmer |
| Model No | 35808-71 |
