Description

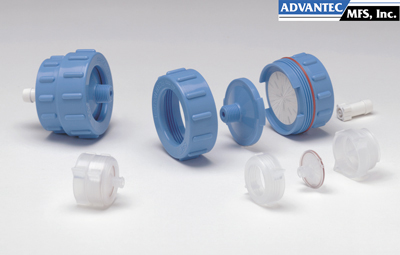

Advantec MFS™ PP-25 (540100) 25 mm Polypropylene In-line Holder 6/PK, 43303010Applications:
- Sterilize and ultraclean liquids under positve pressure
- Sample liquids aseptically at point-of-use
- Excellent chemical compatibility
- Wide temperature range
- Dual support screens allow for flow in either direction
- Exterior locking ring for quick assembly without tearing the membrane
| Filter Diameter (mm) | 25 |
| Prefilter diameter (mm) | 21 |
| Body and Support Screen Materials | Polypropylene |
| O-Ring | Silicone |
| Filtration Area (cm²) | 3.5 |
| Recommended Sample Volume | < 50 mL |
| Inlet Pressure | 0.49 MPa (71 psi) |
| Pressure (maximum differential pressure positive or negative | 0.29 MPa (42 psi) |
| Autoclave Temperature | 121 °C (250 °F), 15 psi, 20 min. slow exhaust only |
| Maximum Operating Temperature, (liquids) | 80 °C (176 °F) |
| Inlet Connection | Female luer slip |
| Outlet Connection | Male luer slip |
| Overall Diameter | 30 mm (1.2") |
| Overall Length | 30 mm (1.2") |
| Weight | 0.41 oz (12 g) per 6 pk/box |
