Description

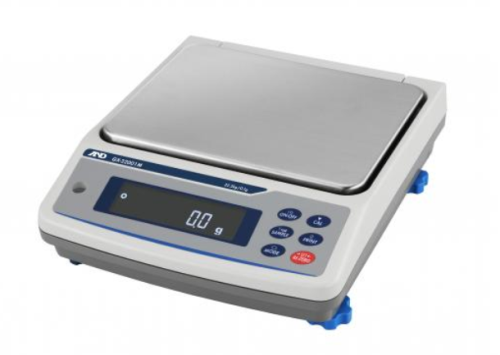

A&D Weighing® Precision Balance, High Capacity Apollo Series Internal Calibration, Capacity 32.2 kg, GX-32001M
Features:
- IP65 rated for protection against dust, spills and light washdown
- Patented SHS weighing technology for high speed & accurate results
- Robust design and 5 year warranty prevent downtime
- Diverse selection of Internal (GX) & External (GF) cal models with a broad range of capacities & resolutions
Specifications:
| Capacity | 32.2 kg |
| Readability | 0.1 g |
| Repeatability (Standard Deviation) | 0.1 g |
| Linearity | ±0.2 g |
| Stabilization Time (Typical When Set to Fast) | Approximately 1.5 seconds |
| Sensitivity drift (10 to 30 °C/50 to 86 °F, when automatic self calibration is OFF) | ±3 ppm/°C |
| Accuracy Immediately After Internal Calibration (for the GX-M Series)*ii | ±1.5 g |
| Data Memory | 200 weighing results + 50 calibration results (with time stamp), 50 unit masses for counting mode, 20 sets of upper and lower limits for comparator mode, and 20 tare values |
| Display Refresh Rate | 5 times per second/10 times per second/20 times/second |
| Units of Measure*iii | g (gram), kg (kilogram), oz (ounce), lb (pound), lb-oz (pound-ounce), ozt (troy ounce), ct (metric carat), mom(momme), dwt (pennyweight), gr (grain), pcs (counting mode), % (percent mode), SG (density mode), and a user programable unit |
| Counting Mode, Minimum Unit of Mass | 0.1 g |
| Counting Mode, Number of Samples | 10, 25, 50, or 100 pcs |
| Percent Mode, Minimum 100% Reference Mass | 10 g |
| Percent Mode, % Readability | 0.01%, 0.1%, or 1% depending on reference mass stored |
| Applicable Calibration Weight Value | 10 kg, 20 kg, 30g |
| Weighing Pan Size | 270 x 210 mm (10.62 in. x 8.26 in.) |
| Dust and Waterproof Rating | IP65 |
| Standard Accessories | Display cover, AC adapter, USB cable (1.8 mm), simple breeze break (for the GX/F-8202 M, GX/F-8202MD and GX/F-10202M models only) |
*i Smart range function: Automatically switches between the precision and standard ranges, and recovers the full precision range with a press of the RE-ZERO key. Applicable to the Dual range models only (GX/F-8202MD and GX/F-32001MD)
*ii Under a stable environment: No rapid temperature/humidity change, vibration, draft, magnetism, static, etc., between 10 °C and 30 °C (50 °F and 86 °F). The mass of the internal weight may vary with age.
*iii One additional unit from tael (Singapore/HK jewelry/Taiwan), tola, or Newton can be added upon request. Grain is not available with the GX/F-32001MD models.
Specifications
| Capacity | 32.2 kg x 0.1 g |
|---|---|
| Power | AC adapter / approximately 30 Volt-Amperes (VA) |
| Accuracy | +/- 1.0 g after internal calibration (GX-M) models |
| Operating Environment | 5 to 40 °C (41 to 104 °F ), |
| Connectivity | RS-232C |
| Connectivity | USB |
| Other | Repeatability 0.1 g |
| Other | Linearity +/- 0.2 g |
| Dimensions | 300 (W) × 355 (D) × 111 (H) mm |
| Weight | Approximately 9.3 kg |
| Manufacturer | A&D Weighing |
| Model No | GX-32001M |
| Warranty | 5 years |
