Description

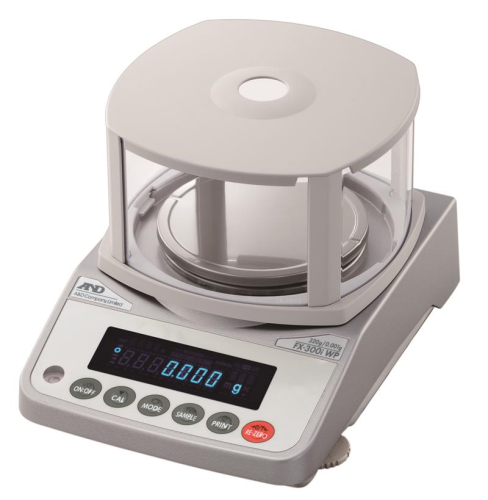

A&Ds FX-i Series entry level precision balance is a full-featured 0.01g to 1mg readability balance at a very affordable price. The patented Compact Super Hybrid Sensor is at the heart of this unit and provides fast, one-second weighing response time. The FX-i also contains a specially designed internal shock absorber that offers protection from the adverse effects of vertical or transverse overloading. Legal-for-trade models (NTEP and Measurement Canada) are also available.
Product Features
- Compact SHS (Super Hybrid Sensor) 1 Second Stabilization
- Bright vacuum flourescent display
- Multiple Weighing Units (g, oz, lb, lb-oz, ozt, ct, mom, dwt, GN, tl, tol, mes, pcs, % and MLT)
- SCF-Statistical Calculation Function
- Quick USB Interface (FXi-02)
Specifications
|
Capacity x Readability
|
g
|
3200 x 0.01
|
| oz | 112.8 x 0.0005 | |
| lb | 7.05 x 0.00005 | |
| lb-oz | 7 lb, 0.88 oz x 0.01 oz | |
| ozt | 102.8 x 0.0005 | |
| ct | 16000 x 0.05 | |
| dwt |
2062 x 0.01
|
|
| GN | 49383 x 0.2 | |
|
Counting Mode
|
Min.Unit Mass
|
0.01g
|
|
# of Samples
|
5 , 10, 25, 50 or 100 pieces
|
|
|
Percent Mode
|
Min. 100% Ref. Mass |
1.00g
|
| Min. 100% Display |
0.01%, 0.1%, 1% (depends on the reference mass stored)
|
|
|
Repeatability (Std. Deviation)
|
0.01g
|
|
|
Linearity
|
±0.02g
|
|
|
Stabilization Time (typically set at FAST)
|
Approx. 1 Second
|
|
|
Sensitivity Drift (10 °C to 30 °C)
|
±2ppm / °C
|
|
|
Operating Temp
|
5°C to 40°C (41°F to 104°F), 85% RH or less (no condensation)
|
|
|
Display type
|
Vacuum Fluorescent Display (VFD)
|
|
|
Display refresh Rate
|
5 times / second, 10 times / second or 20 times / second
|
|
|
Std. Serial Interface
|
RS-232C Interface
|
|
|
Weighing Pan
|
150mm
|
|
|
External Calibration
|
3000g / 2000g / 1000g
|
|
|
AC Adapter
|
Adapter type for local voltage and power receptacle
|
|
|
Power Consumption
|
Approx. 11VA (supplied to the AC adapter)
|
|
|
External Dimensions
|
193 (W) x 262.5 (D) x 84.5 (H) mm
|
|
|
Net Weight
|
Approx. 2.5kg
|
|
Specifications
| Manufacturer | A&D Weighing |
|---|---|
| Model No | FX-3000i |
