Description

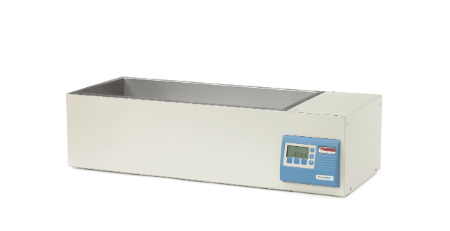

Thermo Scientific™ Model CIR 89 Precision™ Circulating Water Bath, 89L, Ambient plus 5 degrees to 100 degrees C, Global Voltage 100-115V/200-230V, 50/60HzThese water baths were designed for applications where temperature uniformity and control are critical, such as working with enzymes and in serological applications. These high performance baths feature a microprocessor control and include a removable stainless steel gable cover, diffuser tray and rubber duck.Features:
Additional Sizes:
- Perimeter-directed water flow helps achieve outstanding temperature uniformity
- Coil-free design allows easy cleaning and maintenance
- Auto-on/Auto-off timers allows optimization of scheduling
- Low-fluid protection prevents bath overheating
- Icon-based graphical display for ease of operation and monitoring
- New extended-height, hinged lid accommodates taller labware
- Audible alarms protects samples
| Model | Precision™ CIR 89 |
| Temperature Range (Metric) | Ambient plus 5 °C to 100 °C |
| Heating Capacity Capacity | 1500 W |
| Bath Volume | 89 L (23.5 gal) |
| Cabinet Material | Epoxy Powder-Coated Cold Rolled Steel |
| Chamber Material | 304 Stainless Steel |
| Temperature Presets | 4 |
| Temperature Stability | ± 0.1 °C |
| Temperature Uniformity | ± 0.05 °C |
| Amperage | 11.2-13.1 / 5.4-6.3 (120V - 230V) |
| InteriorDimensions, L x W x H, inches/ (mm) | 19 x 36 x 9.5 (483 x 914 x 241) |
| ExteriorDimensions, L x W x H, inches/ (mm) | 21.5 x 45.7 x 11.8 /(546x 1160 x 300) |
| Electrical Requirements | Global Voltage 100-115 V / 200-230 V50-60 Hz |
| Controller Type | Digital |
| Display | Monochrome LCD |
| Includes | 2 Stainless Steel Gable Covers, 2 Diffuser Trays, and Rubber Duck |
| Quick Disconnect Drain | No |
| Certifications / Compliance | UL, CE |
| Catalog No. | Model No. | Capacity |
| 90-2301-60 | CIR 19 | 19 L |
| 90-2301-61 | CIR 35 | 35 L |
| 90-2301-62 | CIR 89 | 89 L |
