Description

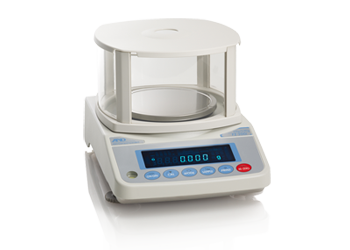

A&Ds FX-i Series entry level precision balance is a full-featured 0.01g to 1mg readability balance at a very affordable price. The patented Compact Super Hybrid Sensor is at the heart of this unit and provides fast, one-second weighing response time. The FX-i also contains a specially designed internal shock absorber that offers protection from the adverse effects of vertical or transverse overloading. Legal-for-trade models (NTEP and Measurement Canada) are also available.
Product Features
- Compact SHS (Super Hybrid Sensor) 1 Second Stabilization
- Bright vacuum flourescent display
- Multiple Weighing Units (g, oz, lb, lb-oz, ozt, ct, mom, dwt, GN, tl, tol, mes, pcs, % and MLT)
- SCF-Statistical Calculation Function
- Quick USB Interface (FXi-02)
Specifications
|
Capacity x Readability
|
g |
1220 x 0.01 |
| oz | 43.0 x 0.0005 | |
| lb | 2.68 x 0.00005 | |
| lb-oz | 2 lb, 11.03 oz x 0.01 oz | |
| ozt | 39.2 x 0.0005 | |
| ct | 6100 x 0.05 | |
| dwt | 786 x 0.01 |
|
| GN | 18827 x 0.2 | |
|
Counting Mode
|
Min.Unit Mass |
0.01g |
# of Samples |
5 , 10, 25, 50 or 100 pieces |
|
|
Percent Mode
|
Min. 100% Ref. Mass | 1.00g |
| Min. 100% Display | 0.01%, 0.1%, 1% (depends on the reference mass stored) |
|
Repeatability (Std. Deviation) |
0.01g |
|
Linearity |
±0.02g |
|
Stabilization Time (typically set at FAST) |
Approx. 1 Second |
|
Sensitivity Drift (10 °C to 30 °C) |
±2ppm / °C |
|
Operating Temp |
5°C to 40°C (41°F to 104°F), 85% RH or less (no condensation) |
|
Display type |
Vacuum Fluorescent Display (VFD) |
|
Display refresh Rate |
5 times / second, 10 times / second or 20 times / second |
|
Std. Serial Interface |
RS-232C Interface |
|
Weighing Pan |
150mm |
|
External Calibration |
1000g / 500g |
|
AC Adapter |
Adapter type for local voltage and power receptacle |
|
Power Consumption |
Approx. 11VA (supplied to the AC adapter) |
|
External Dimensions |
193 (W) x 262.5 (D) x 84.5 (H) mm |
|
Net Weight |
Approx. 2.5kg |
|
Specifications
| Manufacturer | A&D Weighing |
|---|---|
| Model No | FX-1200i |
