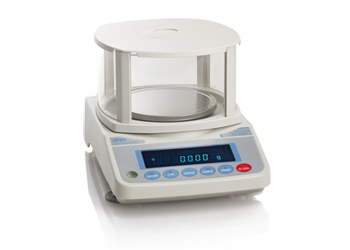

Precision Topload Balance, A&D FX-5000i, 5200 g Capacity x 0.01 g Readability
Roll over image to zoom in Click on image to zoom
Precision Topload Balance, A&D FX-5000i, 5200 g Capacity x 0.01 g Readability

Precision Topload Balance, A&D FX-5000i, 5200 g Capacity x 0.01 g Readability

Item: 90-1709-12-EA
UOM: EA (1)
Price:
$1,246.00

Description


A&D’s FX-i Series entry level precision balance is a full-featured 0.01g to 1mg readability balance at a very affordable price. The patented Compact Super Hybrid Sensor is at the heart of this unit and provides fast, one-second weighing response time.  The FX-i also contains a specially designed internal shock absorber that offers protection from the adverse effects of vertical or transverse overloading. Legal-for-trade models (NTEP and Measurement Canada) are also available.

Product Features
  • Compact SHS (Super Hybrid Sensor) 1 Second Stabilization
  • Bright vacuum flourescent display
  • Multiple Weighing Units (g, oz, lb, lb-oz, ozt, ct, mom, dwt, GN, tl, tol, mes, pcs, % and MLT)
  • SCF-Statistical Calculation Function
  • Quick USB Interface (FXi-02)

Specifications

Capacity x Readability  /  g
5200 x 0.01
Counting Mode / Min. Unit Mass
0.01g
Percent Mode  /  Min. 100% Ref. Mass
1.00g
Repeatability
0.01g
Linearity
±0.02g
Stabilization Time
Approx. 1 Second
Sensitivity Drift
±2ppm / °C
Operating Temp
5°C to 40°C (41°F to 104°F), 85% RH or less (no condensation)
Display type
Vacuum Fluorescent Display (VFD)
Display refresh Rate
5 times / second, 10 times / second or 20 times / second
Std. Serial Interface
RS-232C Interface
Weighing Pan
150mm
External Calibration
5000g / 4000g / 3000g / 2000g / 1000g  /  500g
AC Adapter
Adapter type for lacal voltage and power receptacle
Power Consumption
Approx. 11VA (supplied to the AC adapter)
External Dimensions
193 (W) x 262.5 (D) x 84.5 (H) mm
Net Weight
Approx. 2.5kg






Specifications

Manufacturer A&D Weighing
Model No FX-5000i
