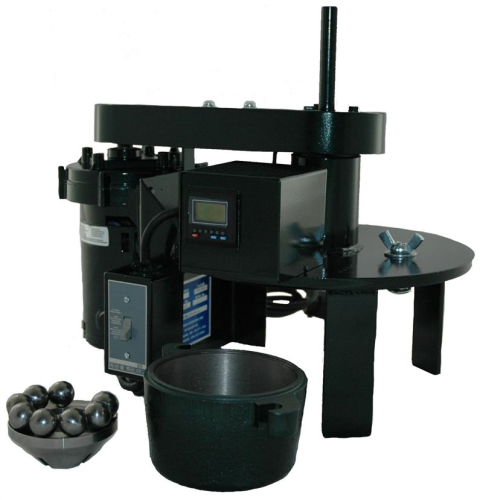

Preiser Hardgrove Grindability Tester 220 V/1 PH/50Hz

Preiser Scientifics Grindability Tester is a compact precision built instrument designed specifically for the determination of the relative hardness or abrasive potential of coal. Unit is constructed in strict accordance with ASTM Designation D-409 and conforms to procedures proposed by ISO for the determination of the Hardgrove Grindability index of coal and coke.

Features

• Stationary lower steel grinding bowl is mated with an upper grinding ring consisting of eight steel balls that rotate at 20 rpm.
• Grinding ring is rotated by a motor/belt driven spindle to which 29kg of removable weights are attached that bear onto the eight rotating balls.
• A counter/switch assemble totals the number of revolutions and automatically stops the machine at the end of 60 revolutions.
• Sample loading is remarkably easy because of the design of the machine.
• Machine is virtually maintenance free because high-quality and durable materials have been used in the manufacture of this instrument.
• Shipping weight: 180lbs.

Supplied with

• Grinding Balls (8/set).
• Upper and Lower Grinding Elements.
• Automatic Counter/Switch and Timing Belt.
• 29kg removable wts.
