Description

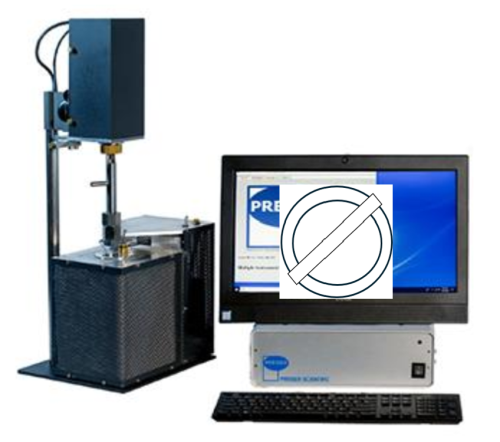

Preiser Plastometer without PC and with Control Box/Head Unit & Solder Pot/Cables/Software
Representative image - no PC included
The market-leading Plastometer is used to determine the fluidity of coking coal. The Plastometer represents a completely new instrument design. The Plastometer uses a commercial PC linked to an instrument specific interface and control box. Inter-unit cabling uses reduced size connections and a USB link to the host PC. The Plastometer head unit and solder pot retains the market leading proven assemblies outfitted with advanced component mounting and other mechanical improvements.
Market's Most Economical System to Increase Sample Throughput:
The instrument interface box to our system is unique in that it is equipped to allow single, double, triple or quadruple instrument operation of a mix of desired Dilatometer and/or Plastometer instrument types. This can be specified at time of purchase or expanded at a later time.
The Plastometer is used for the determination of plastic properties of coal by the Gieseler constant-torque method. It is designed to meet the ASTM Standard D-2639, providing critical data necessary for the thorough analyses of coking coals.
Features:
- Increased accuracy and repeatability
- Improved interface and reporting capabilities
- Expandable to four units with one controller
- Data sampling aligned to customer needs
- Easy calibration of thermocouple
- Easy test setup
- Internal 4000 Dial Divisions/Revolutions Resolution
- New low torque optical encoder
- Improved solder pot temperature control
- PDF Test Result Summary
- Expandable test results in SciLab/Matlab Format
- Remote assistance
Includes:
- 1 Plastometer Head Unit and Solder Pot
- Control Box
- Cabling
- Software
International Plastometer Brochures
| Simplified Chinese | Traditional Chinese | Japanese | Indonesian |
| Korean | Vietnamese | Russian | Czech |
| Turkish | Polish | German | Dutch |
| Italian | French | Spanish | Portuguese |
Specifications
| Range | 0-180,000 DDPM (150,000 DDPM range @ 50Hz) |
|---|---|
| Power | 230VAC/50-60Hz/1Ph |
| Application | Relative measure of the plastic behavior of coal |
| Accuracy | 0.1 DDPM resolution |
| Compliant/Standard | ASTM D2639 and ISO 10329 |
| Connectivity | USB; internet |
| Other | Up to 4 units on one controller/PC |
| Dimensions | 4 feet of bench space suggested for single plastometer ( |
| Manufacturer | Preiser Scientific |
| Warranty | 1 year (non-consumables) |
