Description

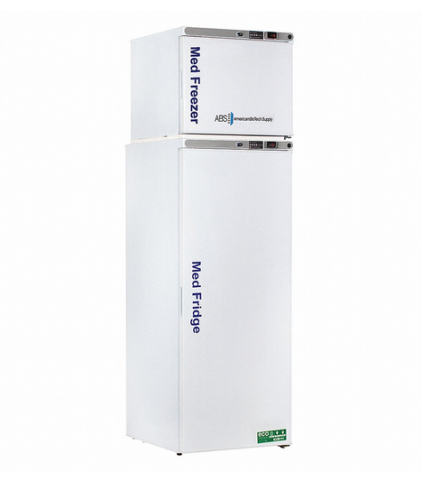

American Biotech® Premier Pharmacy/Vaccine Refrigerator/Freezer Combination, 12 cu. ft. capacity (10.5 cu. ft. Refrigerator/1.7 cu. ft. Freezer), PH-ABT-HC-RFC12
Features:
- Premier Pharmacy Dual Temp Combination units feature separate microprocessor temperature controller allowing for precise temperature control, verification and recovery
- Interior fan driven, forced-draft air circulation system provides excellent temperature uniformity and recovery after door openings — REFRIGERATORS ONLY
- All models are equipped with digital temperature displays for convenient monitoring
- Critical samples and supplies are security backed with extensive package of audible and visual alarms
- Freezer units feature either an automatic or manual defrost operating system
- For manual defrost freezers, periodic manual defrosting is required
- Requires 4” of clearance around back and sides of unit for proper ventilation
- Improper installation will void warranty and will lead to temperature maintenance issues, overheating and possible failure
Note:
- The acceptable temperature ranges for vaccine storage are 36°F to 46°F (or 2°C and 8°C) in the refrigerator and -58°F and 5°F (or -50°C and -15°C) in freezers
- Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines
Specifications:
| Capacity | 12 cu. ft (10.5 cu. ft. Refrigerator/1.7 cu. ft. Freezer) |
| Number of Doors | Two exterior solid swing doors (solid door refrigerator/solid door freezer), right hinged, not reversible |
| Temperature Controller | Dual microprocessor temperature controller |
| Temperature Display | Digital display for both refrigerator and freezer |
| Temperature Certified | Yes, temperature monitor device (TMD) complies with current CDC guidelines, with 3 years certification of calibration |
| Temperature Probe | Yes, “buffered” probe in product simulated solution, with minimum/maximum memory — 2 probes; 1 in air and 1 in sample bottle, in both refrigerator and freezer |
| Temperature Units | F / C switchable |
| Alarms | Audible and visual high and low temperature alarms, refrigerator and freezer; remote alarm contacts, refrigerator and freezer |
| Shelves | Six adjustable shelves with guard rail on back to prevent product from being pushed against back wall, Refrigerator; two adjustable shelves with guard rail on back to prevent product from being pushed against back wall, Freezer; bottom footed shelf to allow air circulation, Refrigerator and Freezer |
| Air Circulation | Forced draft circulation Refrigerator |
| Warning Labels | Vaccine storage power cord warning label |
| Security Locks | Yes, keyed door locks |
| Door Gasket | Magnetic door gasket for positive seal |
| Door Handles | Yes, integrated handles |
| Leveling | Yes, leveling legs |
| Stacking | Stacking kit included |
| Access Ports | Two probe access ports (3/8"); one, refrigerator/one, freezer |
| Power Outlets | Two included |
| Exterior Finish | White powder-coated |
| Refrigerant/Insulation | HFC-free refrigerant (R600a), foam insulation and packaging |
| Defrost | Manual defrost freezer / cycle defrost refrigerator |
Specifications
| Range | Temperature: adjustable range: refrigerator: 36 to 46 deg F (2 to 8 deg C); Freezer: 5 to -13 deg F (-15 to -25 deg C) |
|---|---|
| Capacity | 10.5 cu ft |
| Power | 115V, 60 Hz, 2.3 Amps refrigerator, 1 Amp freezer, 1/3 HP refrigerator, 1/8 HP freezer |
| Compliant/Standard | UL/C-UL listed |
| Dimensions | Exterior: 23 5/8 in. W x 26 1/2 in. D x 80 1/4 in. H |
| Weight | Shipping: 289 lbs. |
| Manufacturer | American Biotech |
| Model No | PH-ABT-HC-RFC12 |
| Warranty | 2 year parts and labor, additional three year compressor parts warranty |
