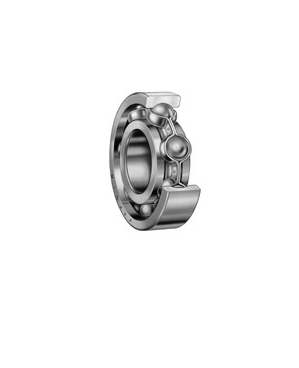

Radial/Deep Groove Ball Bearing - Round Bore, 0.2500 in ID, 0.6250 in OD, 0.2813 in Width, Double Shielded, C0 Internal Clearance
Roll over image to zoom in Click on image to zoom
Radial/Deep Groove Ball Bearing - Round Bore, 0.2500 in ID, 0.6250 in OD, 0.2813 in Width, Double Shielded, C0 Internal Clearance

Radial/Deep Groove Ball Bearing - Round Bore, 0.2500 in ID, 0.6250 in OD, 0.2813 in Width, Double Shielded, C0 Internal Clearance

Item: FRS-600000B-EA
Request a Quote

Description

Radial/Deep Groove Ball Bearing - Round Bore, 0.2500 in ID, 0.7500 in OD, 0.2813 in Width, Double Shielded Sides, C0 Internal Clearance

Features:

  • For torque test
  • Super finished raceways
  • Quiet operations
  • Extra Small S-Series are well-suited for fractional horsepower motors, precision instruments, appliances, and similar devices
  • Straight bore

Specifications

Range Dynamic Load Capacity-375 lbs
Range Static Load Capacity-175 lbs
Material Steel
Operating Environment Maximum temperature: 120 degrees C
Other Double shielded
Other Single row non-fill slot
Dimensions 0.2500 in bore diameter; 0.6250 in. outside diameter, 0.2813 in. width
Manufacturer Timken (Fafnir)
Model No S1KDD
