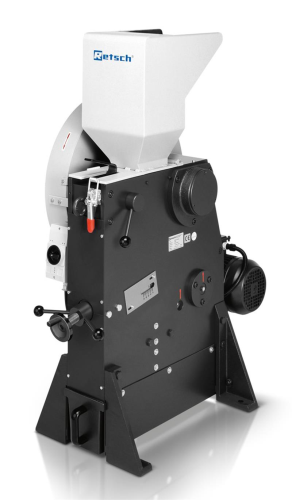

Retsch® BB 200 Jaw Crusher with Manganese Steel Breaking Jaws and Stainless Steel Wearing Plates, 220 V, 60 Hz, 20.053.0012The BB 200 Jaw Crusher is used for rapid, effective crushing and pre-crushing of medium-hard, hard, brittle and tough materials. The variety of materials offered, including heavy-metal-free steel, and the efficiency and safety make it ideal for sample preparation in laboratories and industrial plants. It can be used batch-wise for small samples or operated continuously for large amounts. Gap width and zero point are fully controllable for reproducible results. The unit is protected from overloads by the Belleville spring washer and this, along with central lubrication, allows for a long service life.The BB 200 is a robust and powerful forced-fee crusher. The feed material passes through the no-rebound hopper and enters the crushing chamber. Size reduction takes place in the wedge-shaped area between the fixed crushing arm and one moved by an eccentric drive shaft. The elliptical motion crushes the sample which then falls under gravity into the collector.
Features:
- Excellent crushing performance
- Wear compensation with zero-point adjustment
- Infinitely gap width setting
- Overload protection
- Wide range of materials for contamination free grinding
- No-rebound feed hopper with quick-release clamp
- Brake motor with safety switch
- Easy-to-clean crushing chamber
- Continuous grinding
- Connector for dust extraction
- Central lubrication suitable for integration in automatic installations
- Special version for grinding semi-conductor materials
- Multiple material configurations of breaking jaws and wearing plates available to fit a wide variety of applications
Application examples:
- Alloys
- Basalt
- Cement clinker
- Ceramics
- Chamotte
- Coal
- Coke
- Construction materials
- Feldspar
- Glass
- Granite
- Minerals
- Ores
- Oxide ceramics
- Quartz
- Rocks
- Silicon
- Slag
- and Others
Specifications:
| Applications |
Coarse and pre-crushing |
| Field of application |
Chemistry/plastics/construction materials/engineering/electronics/environmental/recycling/geology/metallurgy/glass/ceramics |
| Feed material |
Medium-hard, hard, brittle, tough |
| Size reduction principle |
Pressure |
| Material feed size* |
< 90 mm |
| Final fineness* |
< 2 mm |
| Material of grinding tools |
Manganese steel, stainless steel, tungsten carbide, steel 1.1750 (for heavy-metal free grinding) |
| Jaw width |
90 x 90 mm |
| Gap width setting |
0 - 30 mm |
| Gap width display |
Scale |
| Zero point adjustment |
Yes |
| Hinged hopper |
Yes |
| Dust extraction unit |
Yes |
| Central lubrication |
Yes |
| Process line version |
Optional |
| Collector capacity |
5 l |
| Drive |
1-phase motor / 3-phase motor |
| Drive power |
1.5 kW |
| Electrical supply data |
Different voltage requirements available |
| Power connection |
1-phase / 3-phase |
| Protection code |
IP 54 |
| W x H x D closed |
450 x 1160 x 900 mm |
| Net weight |
Approx. 300 kg |
| Standards |
CE |
*depending on feed material and instrument configuration/settings
