Description

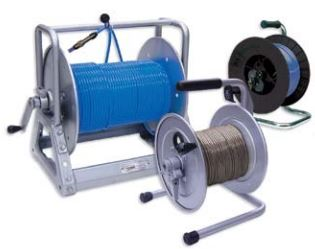

In-Situ™ RuggedCable® Systems for Aqua TROLL® and Other Environmental Monitoring Instruments, 0052000
Features:
- Provides real-time data communication for In-Situ™ instruments
- Manufacturer to endure harsh enviornments and provide reliable data for years
- Includes patented twist-lock connectors and Kellems grip
- Available in either vented (gauged) or non-vented (absolute) cables to suit the application
- Kevlar® wrapped with either thermoplastic polyurethane or Tefzel® cable jacket
- Select customized lengths up to 1,219 m (4,000 ft)
- Select twist-lock termination on one or both cable ends to fit application
- Stripped-and tinned termination for connect to controllers or third-party data collection platforms
- Desiccant cartridges available for use with vented systems
- Plastic or steel reels (required for cables greater than 100 feet)
Note:
- RuggedCable® System must be customized to suit the application. Contact a sales representative to schedule a site survey.
Specifications:
| Operating Temperature Range | -25 to 80 °C (-13 to 176 °F) |
| Jacket Options | TPU (thermoplastic polyurethane)orTefzel® (ETFE fluoropolymer — generic eqivalent of Teflon®) |
| Vent Options | Non-vented (Absolute)orVented (guaged) with desiccant (used to mitigate moisture/humidity) |
| Conductors | 6 conductors, 24 AWG, polypropylene insulation |
| Cable Diameter | TPU: 6.7 mm (0.265 in.)Tefzel®: 6.35 mm (0.25 in.) |
| Connector Diameter | 18.5 mm (0.73 in.) |
| Weight | Non-vented, TPU: 16 kg/300 m (35.6 lbs/1000 ft.)Non-vented, Tefzel®: 14 kg/300 m (32 lbs/1000 ft.)Vented, TPU: 14 kg/300 m (32 lbs/1000 ft.)Vented, Tefzel®: 14 kg/300 m (32 lbs/1000 ft.) |
| Minimum Bend Radius | 2Xs cable diameter; 13.5 mm (0.54 in.) |
| Break Strength | 127 kg (280 lbs.) |
| Maximum Cable Length | 1219 m (4000 ft) for RS485 |
| Desiccant Pack (Required for Vented Systems) | Large and extra large desiccant packs available with titanium, ABS, or stripped-and tinned termination |
| Warranty | 2 years |
RuggedCable® Selection Guide:
| Application | Jacket Type | Cable Type |
| Aquifer Characterization | TPU or Tefzel® | Vented |
| Crest Stage Gaging | TPU | Non-vented |
| Dewatering | TPU | Vented or Non-vented |
| Flood and Storm Surge Monitoring | TPU | Non-vented |
| Landfill monitoring | Tefzel® | Non-vented |
| Municipal and Industrial Monitoring (SCADA) | TPU | Non-vented |
| Remediation Projects | Tefzel® | Vented |
| River, Lake, and Reservoir Monitoring | TPU | Vented or Non-vented |
| Saltwater/Brackish Water | TPU or Tefzel® | Vented or Non-vented |
| Stormwater Monitoring | TPU | Vented or Non-vented |
| Tide/Harbor Monitoring | TPU or Tefzel® | Vented |
| Wetland and Estuary Monitoring | TPU or Tefzel® | Vented or Non-vented |
Aqua TROLL® Sensors:
| Cat. No. | Mfg P/N | Description |
| 92-1629-09 | 0063490 | AT Temperature Sensor |
| 92-1629-10 | 0063470 | AT pH/ORP Sensor |
| 92-1629-16 | 0063460 | AT Temperature/Conductivity Sensor |
| 92-1629-17 | 0063450 | AT RDO Sensor w/RDO-X cap |
| 92-1629-21 | 0033700 | AT Ammonium ISE Sensor |
| 92-1629-22 | 0033710 | AT Nitrate ISE Sensor |
| 92-1629-23 | 0033720 | AT Chloride ISE Sensor |
| 92-1629-24 | 0038900 | AT Chlorophyll a Sensor |
| 92-1629-25 | 0038920 | AT Phycocyanin (BGA-PC) Fluorometer Sensor |
| 92-1629-26 | 0038930 | AT Phycoerythrin (BGA-PE) Fluorometer Sensor |
| 92-1629-27 | 0038890 | AT Rhodamine WT Fluorometer Sensor |
| 92-1629-37 | 0063480 | AT Turbidity Sensor |
Other Aqua TROLL® Accessories:
| Cat. No. | Mfg P/N | Description |
| 92-1629-12 | 0063510 | AT Sensor Port Plug |
| 92-1629-13 | 0063500 | AT Wiper |
| 92-1629-14 | 0064630 | AT Wiper Port Plug |
| 92-1629-15 | 0076100 | AT Copper Antifouling Restrictor Guard |
| 92-1629-31 | 0053310 | RuggedCable® Connector W/Male Connector End to Stripped & Tinned End |
| 92-1629-32 | 0052500 | TROLL Com® Bundle w/USB Connector & Software CD |
| 92-1629-35 | 0020680 | Conductivity Calibration Sol'n 1413 µS, 1 L |
| 92-1629-42 | 0051810 | Lg Desiccant w/Titanium Connector f/Vented RuggedCable Systems |
| 92-1629-43 | 0031240 | Wireless TROLL Com® for Aqua TROLL® & Level TROLL® |
| 92-1629-51 | 0061150 | Rugged Android™ 7" Tablet |
| 92-1629-53 | 0029140 | Desiccant Refill Kit |
| 92-1629-71 | 0052000 | RuggedCable® Systems for Aqua TROLL® & Other In-Situ™ Instruments |
Specifications
| Application | Environmental monitoring |
|---|---|
| Manufacturer | In-Situ Inc |
| Model No | 0052000 |
