Description

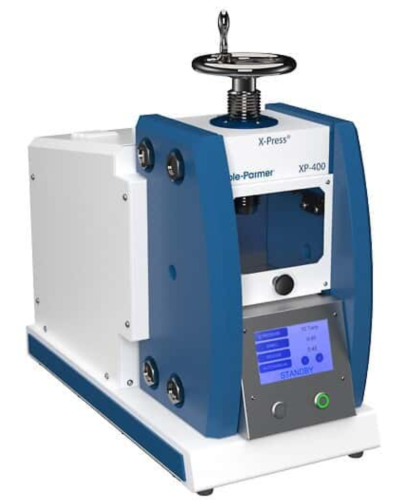

Cole-Parmer® SamplePrep XP-400 X-Press® Hydraulic Laboratory Pellet Press, 35-Ton, 115 V, EW-04577-46
Features:
- Accepts all Cole-Parmer® SamplePrep evacuable pellet die sets
- Can be operated anywhere in world, even under most primitive conditions
- Economical alternative to motorized presses for labs within small sample load
- Hardened steel buffer plate is engraved with concentric circles and enables easy centering of die
- Manual, hydraulic laboratory press with buffer plate
- Rugged, reliable and noted for its extraordinary durability
- Upper platen is equipped with safety shield for operator protection
- 35-ton (31.8 metric ton) hydraulic laboratory pellet press that accepts 13 mm, 31 mm, 35 mm, and 40 mm pellet die sets
- Automatic and fully programmable press intended for pressing sample pellets for spectroscopy
- Designed for repetitive pressing of sample pellets for XRF, IR, and other analytical techniques
- Typical sample types include: cement, rocks, minerals, soil, ceramics and pharmaceuticals
- Requires minimum operator workload and provides maximum uniformity
- Can also be operated manually
- Made in USA
Specifications
| Range | Force: 0 to 35 tons ram pressure |
|---|---|
| Range | Dwell / Release Times: 0 to 10 minutes / 15 seconds to 10 minutes |
| Range | Daylight: 5 to 15 cm / 2 to 6 in. |
| Range | Screw Adjustment: 9.0 cm / 3.5 in. |
| Power | 115 VAC / 60 Hz with 3-prong grounded plug |
| Compliant/Standard | CE Certified |
| Other | Platen size: 8 cm / 3.25 in. diameter |
| Other | Platen movement: 25 mm / 1 in. |
| Dimensions | W x D x H: 33.0 x 57.2 x 50.8 cm / 13.0 x 22.5 x 20.0 in. |
| Weight | 66 kg / 145 lbs |
| Manufacturer | Cole Parmer )Former SPEX) |
| Model No | EW-04577-46 |
