Description

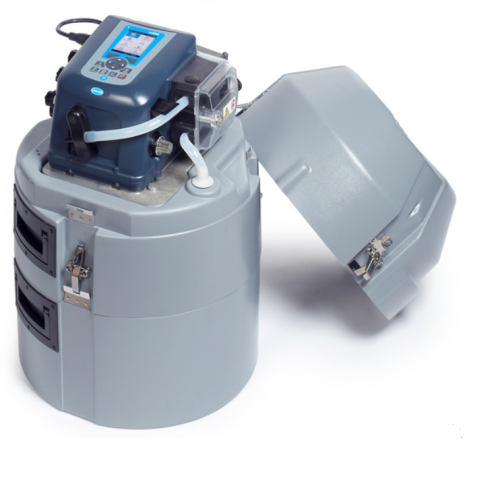

HACH® Sampler, Portable Standard Bundle Model AS950 with 2.5 Gallon Bottle, ASP.CXXXS121XX
Features:
- Simplifies sampling with large, full-colour display for intuitive, single-screen programming
- USB upload and download capabilities and ability to copy programs sampler to sampler saves time on tedious programing
- Error alert and status screen to eliminate uncertainty and simplify troubleshooting
- Designed for accuracy and convenience
- Quickly switch between composite and discrete sampling in field
- Configurable for single or multiple bottle applications
- Specifically designed for use in 18-inch manholes
- Spring-mounted rollers provide long tubing life keeping maintenance costs low
- Desiccant and pump tubing can easily be accessed; replacement is possible without any tools
- Rugged see-through pump cover is made for quick visual inspection
Included:
- 1 ea. AS950 controller on standard portable base
- 1 ea. 12V battery
- 1 ea. Bottle kit includes:
- 2.5 gallon polyethylene bottle w/cap
- Container support
- Full bottle shut-off
- 1 ea. 25' vinyl intake tubing
- 1 ea. strainer
- (Battery charger sold separately)
Specifications
| Range | Sample volume: Programmable in 10 mL increments from 10 - 10,000 mL |
|---|---|
| Capacity | 2.5 gallon |
| Material | Housing: PC/ABS blend, Polyethylene bottle |
| Power | Battery, 12V Lead acid, 3 pin |
| Compliant/Standard | CE, UL |
| Operating Environment | 0 - 49 degrees C |
| Connectivity | Inputs: One 0/4-20 mA input for flow pacing |
| Connectivity | USB and optional RS485 (Modbus) |
| Dimensions | 50.5 cm x 69.4 cm / 19.9 x 27.3 in. |
| Weight | 15 kg |
| Manufacturer | HACH |
| Model No | ASP.CXXXS121XX |
| Warranty | 12 months |
