Description

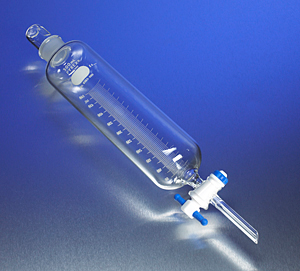

Corning® PYREX® 1000 mL Cylindrical-Shaped Separatory Funnel, Graduated, Glass Standard Taper Stopper, PTFE Stopcock, 1/PK or 2 PKs/CS, 6383-1LFeatures:
Additional Sizes:
- Made from specially molded blanks which are tapered toward the stopcock to facilitate the separation of liquids
- Sturdy design is excellent for rack work
- No. 4 polytetrafluorethylene (PTFE) stopcock plug that fits into the micro-finished barrel
- Strong, lightweight No. 27 Standard Taper glass stopper
| Capacity | 1000 mL |
| Funnel style | Cylindrical-shaped separatory |
| Stopcock style | Straight bore PTFE |
| Stopper style | Hollow glass |
| Top style | Rimless |
| Graduation interval | 10 mL |
| Standard Taper stopcock plug size | No. 4 |
| Standard Taper stopper size | No. 27 |
| Height with stopper | 493 mm (approx) |
| Body outside diameter | 75 mm (approx) |
| Lower stem outside diameter | 10 mm (approx) |
| Lower stem length below stopcock | 65 mm (approx) |
| 12-8004-71 | 125 mL Cylindrical-Shaped Separatory Funnel |
| 12-8004-78 | 250 mL Cylindrical-Shaped Separatory Funnel |
| 12-8004-86 | 1000 mL Cylindrical-Shaped Separatory Funnel |
Specifications
| Manufacturer | Corning |
|---|
