Description

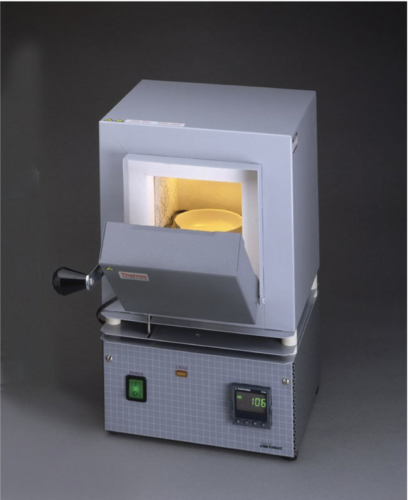

The Model FB1315M Furnace has Ceramic fiber insulation which permits faster heat-up and reduces energy consumption. It has a Digital single set point control. A single display shows actual temperature or set point. Applications:
Supplied with:
- Ignition tests.
- Determination of volatile and suspended solids.
- Ashing organic, inorganic samples.
- Gravimetric analysis.
- Heat treating steel parts.
- Available in two capacities.
- Digitial single setpoint temperature control to 1100°C.
- Single display shows actual temperature or setpoint.
- Ceramic fiber insulation permits faster heatup, reducing energy consumption.
- Embedded heating element on top and both sides improves temperature uniformity.
- Drop-down door doubles as a convenient shelf for loading and unloading.
- The rear of the chamber incorporates a 0.38" (0.95 cm) diameter port for monitoring chamber temperatures with independent measuring devices.
- Door safety switch protects operator by removing power to the heating elements upon opening the door.
- Thermocouple break protection cuts power to the heating elements, prevents a thermocouple failure runaway condition.
| Capacity (heating area) | 1.3 L (0.04 cubic foot) |
| Temperature range | 100 to 1,100 °C |
| Temperature Stability | ±0.3 at 1000°C/±7.8 at 1000°C |
| Electrical requirements | 120V; 50/60 Hz |
| Power consumption | 1,060 watts; |
| Weight | 9 kg (20 lb.) |
| Interior dimensions | 13 x 10.3 x 9.8cm/5 x 4 x 3.8 in. (D x W x H) |
| Exterior dimensions | 33 x 23 x 36cm/13 x 9 x 14 in. (L x W x H) |
| Standards met | CSA approved |
| Manufacturer's warranty | 12 months |
- Thermocouple
- Line Cord
- Plug
