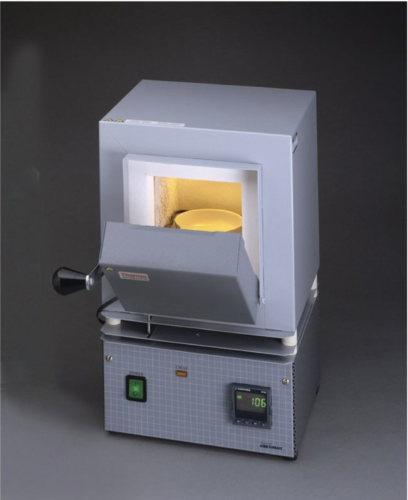

Small BenchTop Muffle Furnace, Model FB1410M, 240 V, 0-1100 Celsius, 50-60 Hz, 1520 Watts, 4.25 in. H x 5 in. W x 6 in. D

Small BenchTop Muffle Furnace, Model FB1410M, 240 V, 0-1100 Celsius, 50-60 Hz, 1520 Watts, 4.25 in. H x 5 in. W x 6 in. D

Item: 18-2725-01-EA
UOM: EA (1)
Price:
$2,550.00

Description

The Model FB1410M Furnace has Ceramic fiber insulation which permits faster heat-up and reduces energy consumption. It has a Digital single set point control. A single display shows actual temperature or set point.Applications
  • Ignition tests.
  • Determination of volatile and suspended solids.
  • Ashing organic, inorganic samples.
  • Gravimetric analysis.
  • Heat treating steel parts.
Features
  • Embedded heating element on top and both sides improves temperature uniformity.
  • Drop-down door doubles as a convenient shelf for loading and unloading.
  • The rear of the chamber incorporates a 0.38" (0.95 cm) diameter port for monitoring chamber temperatures with independent measuring devices.
  • Door safety switch protects operator by removing power to the heating elements upon opening the door.
  • Thermocouple break protection cuts power to the heating elements, prevents a thermocouple failure runaway condition.
SPECIFICATIONS
Overall Dimensions D 15.8 (40)
Overall Dimensions H 14.5 (37)
Overall Dimensions W 10 (25)
Amps 6.3
Volts 240
Watts 1520
Stability at 1000 ± 0.5°C
Uniformity at 1000 ± 5.0°C
