Description

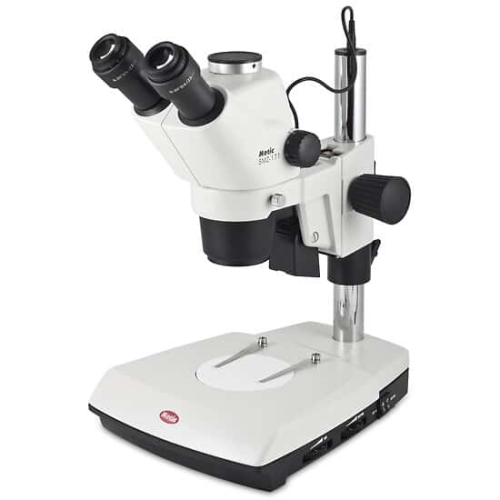

Unitron® SMZ-171-TLED Stereomicroscope, Motic Instruments, Inc., 1100200600767
Features:
- Objective Lens: 0.75x - 5x zoom built-in objective provides continuous magnification with zoom ratio of 6.7:1
- Eyepieces: Includes pair of widefield 10x eyepieces, FN23 (Additional eyepieces (widefield 15x/ FN16 or 20x/ FN13) are available for purchase) — eyepieces are 45 degrees inclined and have dual diopter adjustments and interpupillary adjustment from 52 mm to 75 mm
- Viewing head: Trinocular head and all optics have an anti-fungus treatment applied to them — viewing head rotates 360 degrees, height of eyepoint is 405 mm, and trinocular light split is 50:50 camera: eyepieces
-
Total Magnification: SMZ-171 zoom microscope has 5 click-stops within continuous zoom to allow for exact reproduction of magnifications for precise measurement — 10x eyepieces are included
- 10x eyepieces = 7.5x - 50x
- 15x eyepieces = 11.25x - 75x (purchase separately)
- 20x eyepieces = 15x - 100x (purchase separately)
- Stand: Post stand has built-in transmitted and reflected LED illumination and reversible black/ white stage plate with frosted stage plate are included
- Working Distance: 110 mm working distance can be changed with variety of ESD safe auxiliary objectives that are available for purchase separately
- Focusing: Large dual focusing knobs with slip clutch to prevent damage to mechanism — tension adjustment eliminates focus 'drift'.
- Illumination: 3W LED intensity controlled incident and transmitted illumination
Specifications
| Power | 100 V - 240 V |
|---|---|
| Compliant/Standard | UL approved |
| Dimensions | L x W x H: 303 x 239 x 405mm / 12 x 9.4 x 16 in. |
| Weight | 6.2 kg / 13.6 lbs |
| Manufacturer | Motic Instruments Inc |
| Model No | 1100200600767 |
| Warranty | 5-year |
