Description

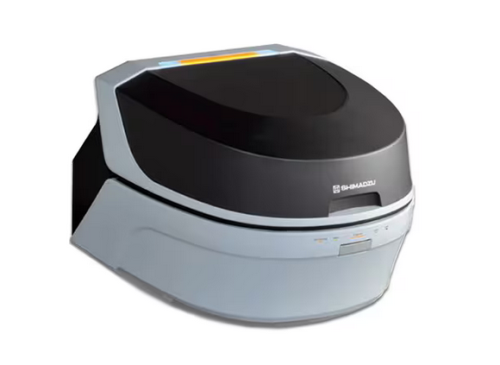

Shimadzu™ Spectrometer, Energy Dispersive X-ray Fluorescence (XRF), 100 to 240 VAC, EDX-7200
Features:
- Designed for high sensitivity, high speed and high precision
- Superior energy resolution incorporating state-of-the-art Silicone Drift Detector (SDD)
- Reduces effects of overlapping peaks of different elements, enhancing reliability of results
- SDD enables electronic air-cooling – no need for liquid nitrogen for reduced cost of operation
- Wide range of elemental analysis with minimum detection limits as low as 0.1 ppm on some elements — includes heavy metals as well as trace elements
- Accommodates all types of samples from small to large, from powders to liquids — large sample chamber in compact instrument
- Options include vacuum measurement unit, helium purge unit for highly sensitive measurement of light elements, and 12-sample turret for automated continuous measurements
- Select most appropriate irradiation diameter for sample shape: 1 mm diameter for trace foreign matter analysis or defect analysis; 3 mm or 5 mm diameter for small sample volumes
- Use sample observation camera to confirm X-ray irradiation area on specific position (supplied standard)
- Irradiated area: automatic switching in four stages: 1, 3, 5, and 10 mm diameter
Applications:
- Mining
- Chemicals
- Oil and Petrochemicals
- Electrical and Electronic Materials
- Automotive and Machinery
- Ferrous and Non-Ferrous Metals
- Ceramics
- Environmental
- Agricultural and Foods
- Pharmaceutical
- and more
Specifications
| Range | Measuring: 11Na to 92U (EDX-7200) |
|---|---|
| Range | Sample size: W 300 × D 275 × approx. H 100 mm (excluding radiuses) |
| Range | Maximum sample mass: 5kg (200g per sample when using turret, Gross mass 2.4kg) |
| Power | 100-240 V AC +/-10%, 2 A earthed socket, x-ray generator: 4 kV to 50 kV, 1 microA to 1000 microA |
| Compliant/Standard | RoHS/ELV, REACH, and TSCA |
| Operating Environment | 10 to 30 degrees C. relative humidity: 40 to 70% (no condensation) |
| Dimensions | W 460 × D 590 × H 360 mm |
| Weight | 45 kg (approximately) |
| Manufacturer | Shimadzu |
| Model No | EDX-7200 |
