Description
Starna Cells® Spectrosil® Cells, Far UV Quartz Windows, Useable Range: 170 to 2700 nm, Starna Cells, 1-Q-50
Features:
- Standard rectangular cells or Macro cells, Type 1, are most common cells used in analytical chemistry
- Exterior dimensions allow cells to be used with virtually every spectrophotometer and photometer instrument currently in use

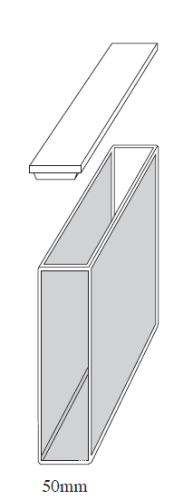

- These cells have exterior height of 45 mm, two clear windows and an open top
- Walls of cell and bottom are smooth on inside
- On outside, light path windows are clear while adjacent windows and bottom are frosted or grey
- Typically, windows are 1.25 mm thick and each cell in this range is supplied with a PTFE cover
| Path Length | 50 mm |
| Exterior, W x L x H | 12.5 x 52.5 x 45 mm |
| Interior, W x L | 9.5 x 50 mm |
| Nominal Volume | 17.5 mL |
| Number of Polished Windows | 2 per cell |
Specifications
| Capacity | 17.5 mL |
|---|---|
| Material | Quartz |
| Manufacturer | Starna Cells |
| Model No | 1-Q-50 |
