Description

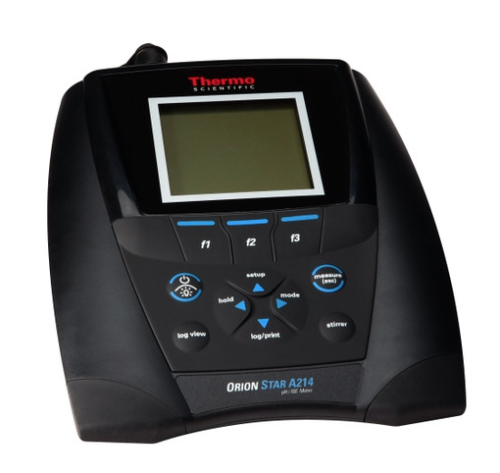

Thermo Scientific™ Orion™ Star™ A214 pH/ISE/mV/Temperature Benchtop Meter Kit, with Stand and Universal Power Adapter, STARA2140
Features:
- Soft keys update for easy selection
- Samples can be mixed without a stir plate with direct control of the Orion™ Star™ stirrer probe ORN-096019 (Orion 096019), sold separately
- Electrode arm and newly designed probe holder included makes it easier to maintain and place probes into samples
- Meter works with almost every AC power source with the included universal power adapter or with four AA batteries (sold separately) to run the meter on DC power
- IP54-rated housing handles splashes and is wall-mountable if table space is a problem
- Multilanguage interface supports English, Spanish, French, Italian, German and Chinese
- AUTO-READ locks in the stable reading on your screen, indicator alerts user when readings are stable and timed reading gathers data in specific time intervals
- Meter offers up to five point pH calibration with automatic recognition for USA/NIST and DIN buffers
- ISE can be used infrequently or multiple times every day with advanced features such as timed end point, linear point-to-point, nonlinear selectable auto-blank and low-concentration range stability
- User can fix errors without a complete recalibration with the calibration editing function
- Nonvolatile memory holds up to 2000 data points with time and date stamp
- User can easily transfer data and keep meter software up-to-date with the USB and RS232 ports
Included:
- Star A214 pH/ISE meter
- Electrode stand
- Universal power adapter
- Literature CD
- Printed quick start guide
- Computer interface cable
- Meter test certificate
Specifications:
| Advanced ISE Functions | Segmented (point-to-point) slope, non-linear selectable auto-blank, low concentration range stability |
| Alarm Output | High/low limit alarm, calibration due alarm |
| Backlight Option | Yes, selectable |
| Battery Life | 800 hr. |
| Calibration | pH with calibration editing option, ion concentration (ISE) with calibration editing option, relativ |
| Calibration Points | 1 point relative mV (RmV) mode, 1 point ORP mode |
| Calibration Points (ISE) | 1 to 5 |
| Calibration Points (pH) | 1 to 5 |
| Data Management Details | Transfer single, range or all data points to printer or computer |
| Data Points | 2000 with date and time stamp |
| Isopotential Point | 7.000 pH |
| Keypad | Comprehensive with menu-specific function keys and dual purpose scroll/shortcut keys |
| Languages | English, Spanish, French, Italian, German and Chinese; Portuguese and Korean available with software update |
| Log Function Type | Automatic data logging with Auto-Read and Timed measure modes; manual data logging with Continuous m |
| Memory | Non-volatile memory preserves data log, calibration log and meter settings |
| Methods | 10 per channel with password protection |
| Probe Type | pH electrode, ORP electrode, ion selective electrode (ISE), reference half-cell electrode, ATC temperature probe, stirrer probe (purchase separately) |
| Resolution (mV) | 0.1 mV |
| Stability | Selectable fast, medium, slow or Smart Stability setting; Selectable off or Automatic Smart averaging setting |
| Temperature Probe Calibration | 1 point temperature offset calibration |
| Temperature Resolution | 0.1 °C, 0.1 °F |
| Temperature Selection | Manual or automatic with ATC temperature probe |
| Channels | 1 |
| Display Type | LCD Graphic, Backlit |
| IP Rating | IP 54 |
| Measurement Modes | pH, mV, relative mV (RmV), ORP or ion concentration (ISE) with temperature |
| Resolution (ISE) | 0.0001 minimum, 1 to 3 significant digits (user selectable) |
| Resolution (pH) | 0.1/0.01/0.001 |
Specifications
| Range | pH: -2.000 to 20.000 |
|---|---|
| Range | ORP, mV and Relative mV: +/-2000.0 mV |
| Range | ISE: 0.0001 to 19900 with selectable units of ppm, Molar, mg/L, %, ppb or none |
| Range | Temperature: -5.0 degrees C to +105.0 degrees C (22.0 degrees F to 221.0 degrees F) |
| Power | Universal 50-60 Hz, 100-240 VAC power adapter (Cat. No. 1010003) or 4 AA (sold separately) |
| Accuracy | pH: +/-0.002, mV and ISE: +/-0.2 mV or +/-0.05% of reading whichever is greater, Temperature: +/- 0.1 degrees C |
| Compliant/Standard | CE, TUV 3-1, FCC Class A |
| Operating Environment | 5 degrees C to 45 degrees C (ambient)/41 degrees F to 113 degrees F, Relative Humidity 5 to 85 %, non-condensing |
| Connectivity | Inputs: BNC (pH, ORP or ion selective electrode), pin-tip (reference electrode), 8 pin MiniDIN (ATC temperature probe), |
| Connectivity | Outputs: USB, RS232 |
| Dimensions | 24 cm x 18 cm x 11 cm (9.5 in. x 7.1 in. x 4.3 in.) L x W x H |
| Weight | 0.9 kg (2 lb.) |
| Manufacturer | Thermo Scientific Orion |
| Model No | STARA2140 |
| Warranty | 3 year |
