Description

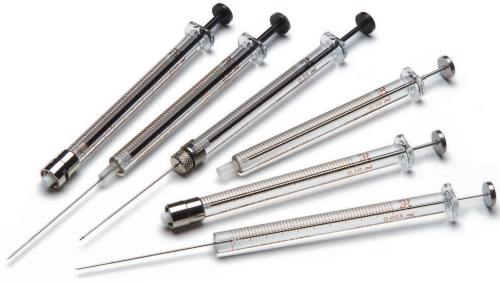

Hamilton® Syringe, Gas Tight, 10 µL Model 1701 N, 10 uL 80075
Features:
- Point style: blunt
- Fluid path: stainless steel, borosilicate glass and PTFE
- 26s gauge
- 0.64 µL dead space
- Cemented needle
- 1700 series syringes are gas tight version of the original 700 series syringes
- This series of gas tight syringes is ideal for dispensing volumes from 1 μL up to 500 μL with variety of different terminations and needle options available
- Gas sterilizable, not autoclavable
Specifications
| Range | Pressure: 1000 psig (68.9 bar) |
|---|---|
| Range | Temperature: 10 to 50 degrees C / 50 to 122 degrees F |
| Range | Gauge: 26s |
| Capacity | 10 microliter |
| Material | Stainless steel, Borosilicate glass, PTFE |
| Other | Needle: 51 mm (2 in.) length x 0.13 mm (0.005 in.) inner diameter x 0.47 mm (0.0187 in.) outer diameter |
| Dimensions | Barrel: 0.460 mm (0.018 in.) inner diameter x 6.6 mm (0.260 in.) outer diameter |
| Manufacturer | Hamilton |
| Model No | 80075 |
