Description

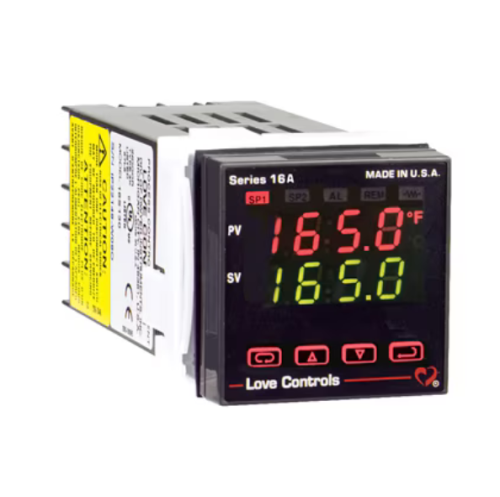

DwyerOmega® Temperature/Process Controller with Relay/Relay Output and Alarm, Love Model, 16A2133
Features:
- Two four-digit LED displays, 0.3 in (7.62 mm) high
- Control output: SPST Relay, Alarm
- Display resolution: 1 degree/ 0.1 degree /1 Count
- Input control signal: 0 to 20 mA
- Input type: Thermocouple, RTD, DC Voltage or DC Current
- Enclosure ratings: IP66, NEMA Type 4X
- Mounting orientation: 1/16 DIN
- Number of digits: 4
- Output note: Relay: SPST, 3A at 240 VAC resistive, 1.5 A @ 240 VAC inductive; Pilot duty rating: 250 VA, 2 A @ 120 VAC, 1 A @ 240 VAC Alarm relay: SPST, 3 A @ 240 VAC resistive; 1.5 A @ 240 VAC
- Output Type A: Relay
- Output Type B: Relay
- RDT Input Range: JPt 100: -4 to 752 degrees F; Pt 100: -328 to 1562 degrees F; Ni 120: -112 to 572 degrees F; Cu 50: -58 to 302 degrees F
- Supply power note: 100 to 240 VAC nominal, +10% -15%, 50 to 400 Hz single phase; 132 to 240 VDC +10% -20%
- Switch rating: 3 A @ 240 Vac, 1.5 A @ 240 Vac
- Switch type: SPST
- Taxonomy Level 1: CTG
- Taxonomy Level 2: CS
- Taxonomy Level 3: ND
- Taxonomy Level 4: ML
- Temperature Sensor Type: RTD or Thermocouple
- Thermocouple Input Range Note: Type K: -328 to 2372 degrees F; Type J: -148 to 2192 degrees F; Type T: -328 to 752 degrees F; Type E: 32 to 1112 degrees F; Type W: -328 to 2372 degrees F; Type R: 32 to 3092 degrees F; Type S: 32 to 3092 degrees F; Type B: 212 to 3272 degrees F; Type L: -328 to 1562 degrees F; Type U: -328 to 932 degrees F
- Voltage Input Range: 0 to 5 V, 0 to 10 V
Specifications
| Power | 100 to 240 Vac, 132 to 240 Vdc, maximum 5 VA |
|---|---|
| Accuracy | +/-0.25% span, +/-1 least significant digit |
| Compliant/Standard | IP66 |
| Operating Environment | Temperature: 14 to 131 degrees F |
| Dimensions | Height x width x depth: 7.9 x 5.2 x 5.5 in. |
| Weight | 8 oz |
| Manufacturer | DwyerOmega |
| Model No | 16A2133 |
