Description

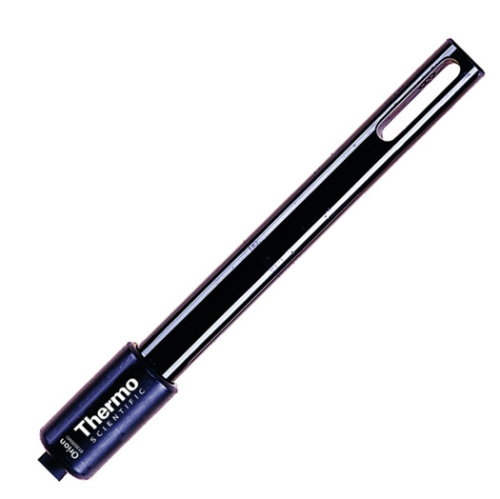

Thermo Scientific™ Orion™ DuraProbe™ 4-Cell Conductivity Probe with 1.5 m Cable, 013605MD
Features:
- Graphite 4-Cell design compensates for electrode fouling, cable length, connector resistance, polarization errors, and fringe field interference errors
- Ideal for high and standard conductivity samples and difficult samples such as wastewater, runoff water and mud
- Compatible with Thermo Scientific™ Orion Star™ and Versa Star Pro™ bench and portable conductivity meters
- Paired together, the instruments can be used to generate accurate, repeatable readings for conductivity, resistivity, TDS and salinity
- Rugged epoxy body
- Built-in temperature sensor for temperature compensated conductivity measurements
Applications:
- Environmental use, including analysis of wastewater, runoff, lakes, rivers, and estuaries
- Drinking water analysis
- Salinity testing
- Food and beverage quality control and clean-in-place
- Aquaculture
- Analysis of pharmaceutical raw materials and intermediates, quality control
Specifications:
| For Use With (Equipment) | Star™ A112, Star™ A122, Star™ A212, Star™ A215, Star™ A222, Star™ A322, Star™ A325, Star™ A329, Versa Star™ and Versa Star Pro™ Conductivity Meters |
| Sensor Types | 4 Electrode Graphite Cell |
| Cell Constant | 0.55 cm-1 |
| Type | 4-Electrode Conductivity Cell, Mini-Din Connector |
| Connector Types | 8-pin Mini-DIN |
| Description | DuraProbe™ 4-Cell Lab and Field Conductivity Probe, 1.5m |
| Length (English) Cable | 5 ft. |
| Length (Metric) Cable | 1.5 m |
| Material | Epoxy-Body |
| Measurement Ranges | 10 µS/cm to 200 mS/cm |
| Minimum Immersion | 35 mm |
| Storage Method | Store in distilled or deionized water between measurements; for overnight or long-term storage, thoroughly rinse and store dry |
| Probe | Conductivity probe with built-in ATC temperature sensor |
Specifications
| Range | Conductivity: 10 micro S/cm to 200 mS/cm |
|---|---|
| Range | Temperature: 0 degrees C to 90 degrees C |
| Dimensions | Body: 120 mm length x 12 mm diameter |
| Manufacturer | Thermo Scientific Orion |
| Model No | 013605MD |
| Warranty | 24 months from date of purchase by Buyer or 36 months from date of shipment from Seller, whichever is earlier |
