Description

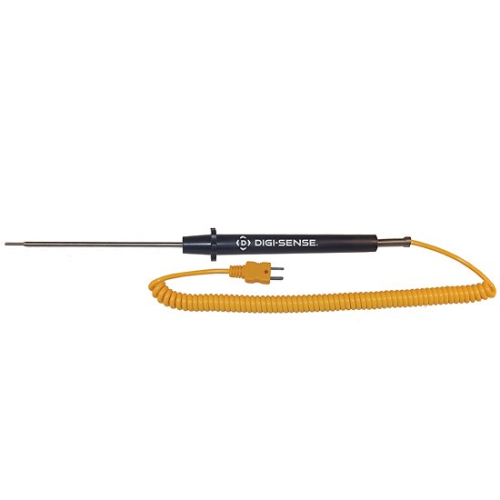

Cole-Parmer® Digi-Sense® Type-K, Standard Probe, Mini Connector, 5" Long x 0.093 " Diameter, w/Grounded Junction and 5 ft. Coiled Cable, WD-08516-55Features:
- Response time: 1.7 seconds or greater
- ABS handles provide light-weight design for ease-of-use and durability
- Probe handles feature a strain relief spring that protects cable connection against damage due to repeated flexing and tugging
- Probe comes with color coded ANSI miniconnector: type J, black; type K, yellow; type t, blue; type E, purple
- Customization available upon request
- Temperature range stated below is for probe tip only; handle material may be affected if probe is rated higher than handle depending on the exposure time, application, and handle material. ABS handles are rated to 104 °C (220 °F); PVC handles are rated to 93 °C (200 °F); Stainless steel handles are rated to 232 °C (450 °F). Mini-connectors are rated to 200 °C (392 °F).
| Probe Type | K |
| Maximum Temperature | 311 °C (700 °F) |
| Minimum Temperature | - 200 °C (- 250 °F) |
| Temperature Accuracy | ± 1.1 °C (± 3.0 °F) or 0.4% for reading above 100 °C (212 °F); ± 2.2 °C (± 3.6 °F) or 2% for reading between - 50 to 99 °C (- 58 to 211 °F); ± 4 °C (± 7.2 °F) or 4% for reading between - 51 to -150 °C (- 60 to -238 °F);whichever is greater |
| Junction | Grounded |
| Connector Type | Mini ANSI |
| Sheath Material | 316 Stainless Steel |
| Handle Material | ABS Plastic |
| Sheath Length | 4.5 in. |
| Handle Length | 5.5 in. |
| Sheath Diameter | 0.0937 in. |
| Cable Type | Coiled |
| Cable Length | 60 in. |
