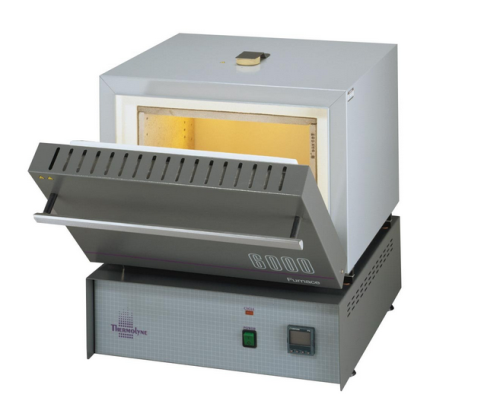

Thermolyne Premium Large Muffle Furnace, Model F6010, 240 V, 50-60 Hz, 6.8 in. H x 12.8 in. W x 10 in. D, with Digital single set point control.
Roll over image to zoom in Click on image to zoom
Thermolyne Premium Large Muffle Furnace, Model F6010, 240 V, 50-60 Hz, 6.8 in. H x 12.8 in. W x 10 in. D, with Digital single set point control.

Thermolyne Premium Large Muffle Furnace, Model F6010, 240 V, 50-60 Hz, 6.8 in. H x 12.8 in. W x 10 in. D, with Digital single set point control.

Item: 18-2755-02-EA
Request a Quote

Description

The Thermolyne Premium Large Muffle Furnace provides a spacious 864 cubic inch (14 liters) capacity and reaches a maximum of 1200°C, making it ideal for ashing organic and inorganic samples and conducting gravimetric analysis.
Product Detail

The Thermolyne Premium Large Muffle Furnace is a high capacity furnace that includes safety features and a choice of four temperature controller models.
Digital single set point control. Single display shows actual temperature or set point.
  • Four heating elements are located on the chambers top, bottom and sides for enhanced temperature uniformity.
  • Built-in vent port removes undesirable contaminants and moisture to extend the life of the element and unit.
  • Rear of the chamber incorporates a 0.38"" (0.95 cm) diameter port for monitoring chamber temperatures with independent measuring devices.
  • Optional stainless steel shelf doubles load capacity (maximum temperature of 900°C).
Safety
  • For added protection, door safety switch stops power to the heating elements when you open the door.
  • Thermocouple break protection cuts power to the heating elements, preventing a thermocouple failure runaway condition.
  • F6010 include a cord and plug set.
