Description

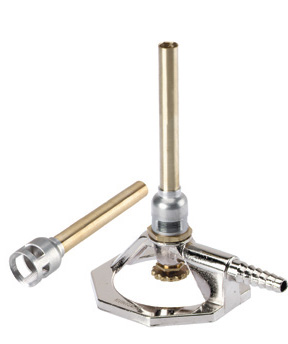

Humboldt Manufacturing® Tirrill Burner for Small-Scale Burning Test on Plastic Materials, LP (Cylinder) Gas, H-5025
Features:
- Noiseless burners provide clear flames
- Separate control of both flame temperature and flame length
- Burners incorporate threaded aluminum air control sleeves and precision machined, fine-pitch brass needle valves with internal stuffing box and self-sealing packings
- Rustproof 3-1/2 in. (89 mm) octagon-shaped, plated die-cast bases
- 2 brass mixing tubes provided – one to lock out the air intake to produce high yellow flane and other can be adjusted for sharp blue flame – for use in 20 mm and 125 mm burning tests
- Pilot flame allows burner to be ignited easily, especially in isolated setups where the burner might not be accessible
- Meets UL flame test
- Meets ASTM D5025
Specifications
| Range | Flame height: 1/2 to 12 in. / 12.7 to 305 mm |
|---|---|
| Range | CFH: 3.85, BTU: to 9400 outputs |
| Material | Nickel-plated die-cast base and brass mixing tubes |
| Compliant/Standard | ASTM D5025, UL flame test |
| Dimensions | Overall height: 6 in. / 152 mm, mixing tube, length x inside diameter: 4 x 3/8 in. / 100 x 9.5 mm |
| Manufacturer | Humboldt Manufacturing |
| Model No | H-5025 |
