Description

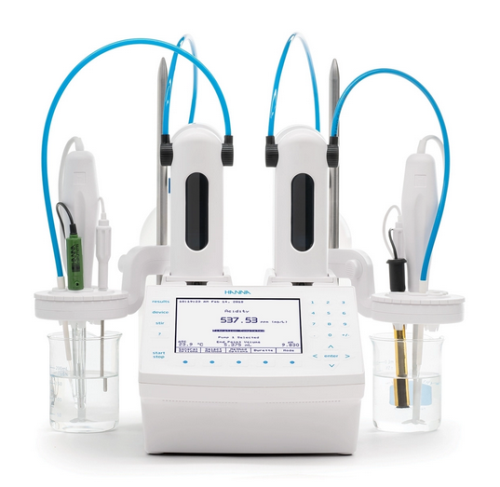

Hanna Instruments® Titrator Advanced Automatic Potentiometric Plus with One Pump, 115V, HI932C101
Features:
- One input analog board—expandable to two input analog boards
- Customizable to meet laboratory needs—various configurations available
- Delivers accurate results and intuitive user experience all in a compact, small-footprint package
- Titrate for variety of published methods at push of a button or perform direct measurements or back titrations for complex samples
- Can be paired with HI922 Autosampler (purchase separately) for most accurate results with least effort
- Increase productivity and efficiency by performing multiple analyses linked in sequence—reduce down time
- Durable, heat and stain resistant body is fully sealed and easy to clean
- LCD display
- Clip-Lock™ burette feature—only takes seconds to exchange titrants and reagents preventing cross-contamination and saving time
- 40,000-step piston-driven pump capable of dosing extremely small and highly accurate volumes of titrant or reagent
- Aspiration and dispensing tubes constructed of durable, chemically resistant PTFE and feature light-blocking polyurethane outer sleeve to protect light-sensitive reagents
- Service contract available HI931932SC (92-2698-27)
Included with:
- Titrator
- Pump Assembly
- Burette Assembly
- Electrodes Holder and Stirrer
- Pump and Burette Locking Screws with Plastic Head
- Temperature Sensor
- Shorting Cap
- Power Adapter
- USB Cable
- Instruction Manual
- USB Memory Stick
- HI900 PC Application (Installation Kit on USB Stick)
- Quality Certificate
Specifications:
| pH Resolution | 0.1; 0.01; 0.001 pH |
| pH Accuracy (@25 °C/77 °F) | ±0.001 pH |
| pH Calibration | up to five-point calibration, eight standard buffers and five custom buffers |
| mV Resolution | 0.1 mV |
| mV Accuracy (@25 °C/77 °F) | ±0.1 mV |
| mV Calibration | single-point offset |
| ISE Resolution | 1; 0.1; 0.01 |
| ISE Accuracy | ±0.5% monovalent; ±1% divalent |
| ISE Calibration | up to five-point calibration, seven standard solutions and five user-defined standards |
| Temperature Resolution | 0.1 °C; 0.1 °F; 0.1 K |
| Temperature Accuracy (@ 25 ºC/77 ºF) | ±0.1 °C; ±0.2 °F; ±0.1 K, excluding probe error |
| Temperature Compensation | manual (MTC) or automatic (ATC) |
| Programmable Stirrer | overhead propeller type, 200 to 2500 rpm, resolution 100 rpm |
| Display | 5.7 in. (320 x 240 pixel) backlit color LCD |
| Burette Sizes | 5, 10, 25, and 50 mL |
| Burette Resolution | 1/40000 |
| Display Resolution | 0.001 mL |
| Dosing Accuracy | ±0.1% of full burette volume |
| Methods | up to 100 methods (standard and user-defined) |
| Logging Data | up to 100 titration and pH/mV/ISE reports |
| Burette Auto-Detection | burette size is automatically recognized when inserted into the unit |
| Flow Rate | user-selectable from 0.1 mL/min to 2 x burette volume/min |
| Endpoint Determination | equivalence point (1st or 2nd derivative) or fixed pH/mV value |
| Potentiometric Titrations | acid/base (pH or mV-mode), redox, precipitation, complexometric, non-aqueous, ion-selective, argentometric |
| Measurement Units | user-specified expression of concentration units to suit specific calculation requirements |
| Real-Time & Stored Graphs | mV-volume or pH-volume titration curve, 1st derivative curve or 2nd derivative curve; pH mode, mV mode or ISE mode: pH/mV/concentration versus time |
| GLP Conformity | instrumentation data storage and printing capabilities |
| Languages | English, Portuguese, Spanish, Deutsch |
| Storage Environment | -20 to 70 °C (-4 to 158 °F), up to 95% RH |
Specifications
| Range | pH: -2.0 to 20.0 pH; -2.00 to 20.00 pH; -2.000 to 20.000 pH |
|---|---|
| Range | mV: -2000.0 to 2000.0 mV |
| Range | ISE: 1 x 10 to negative 6th power up to 9.99 x 10 to the 10th power |
| Range | Temperature: -5.0 to 105.0 degrees C; 23.0 to 221.0 degrees F; 268.2 to 378.2 K |
| Power | 100-240 VAC; "-01" models, US plug (type A); "-02" models, European plug (type C) |
| Application | Simple to complex titrations |
| Operating Environment | 10 to 40 °C (50 to 104 °F), up to 95% RH |
| Connectivity | Flash drive compatibility for transfer of methods and reports |
| Connectivity | Connections for external PC keyboard, printer, PC connection, analytical balance, & USB flash drive |
| Dimensions | 315 x 205 x 375 mm (12.4 x 8.1 x 14.8 in.) |
| Weight | Approximately 4.3 kg (9.5 lbs.) with 1 pump, stirrer and sensors |
| Manufacturer | Hanna Instruments |
| Model No | HI932C101-011D |
| Warranty | 2 years |
