Description

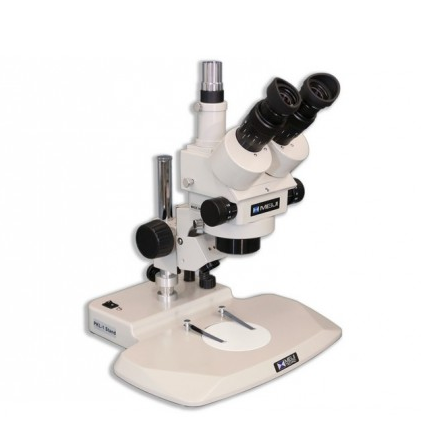

Meiji Techno America® Trinocular Stereomicroscope with SWF 10X Eyepieces, PKL 1 Pole Stand & F Focusing Mount, EMZ-5TR/PKL1/F
Features:
- Trinocular zoom body used for photography and video applications
- When beamsplitter is engaged, 100% of light from left optical path is directed to phototube while image can still be viewed through right eyetube
- Employs greenough optics for improved image flatness and contrast
- Offers high resolution erect unreversed stereoscopic image
- In addition to its compact design and versatility, wide variety of auxiliary lenses and stands are available to allow user to customize their desired working distance to adapt to almost any application
- PKL-1 LED stand with built in incident LED illumination which may be operated independently or simultaneously
- Since LED provides no direct heat, there will not be any external stress on specimen placed on stage
- Equipped with integral F focusing holder with 84.5 mm round diameter opening, mounted on
- low profile wide cast aluminum alloy base stable stand
- Supplied with one 94.5 mm diameter reversible black and white stage plate (MA568) and two stainless steel stage clips (MA593)
- PKL-1 Stand is designed for use mostly with zoom (EMZ Series), but can also be used for our turret (EMT Series) and fixed (EMF Series) stereo bodies wherein only incident illumination is needed
- PKL-1 stand is complementary to our Stereo microscopes due to focus block’s ability to be easily raised vertically if needed for special applications
- 5 in. extension pillar for threaded vertical post is also available if needed to accommodate taller specimens (MA551)
- Chemical Resistant Finish and is auto-voltage sensing power supply (100V-240V)
Specifications
| Manufacturer | Meiji Techno America |
|---|---|
| Model No | EMZ-5TR/PKL1/F |
