Description

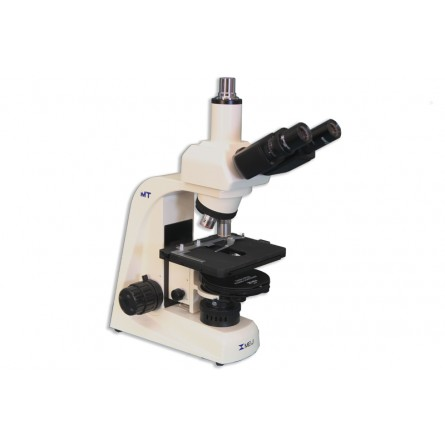

MT4310L LED TRINOCULAR BRIGHTFIELD/PHASE CONTRAST BIOLOGICAL MICROSCOPE
The Meiji Techno MT4310L Series of biological microscopes have been designed as versatile, modular, ergonomic microscope systems which are ideally suited for use in education, research, or advanced laboratory applications.Ergonomic placement of controls allows for stress free operation, increased efficiency and maximum productivity. Operating comfort and ease of use are top design priorities.
The MT4310L Series microscopes feature a new computer engineered rigid frame that incorporates low positioned coaxial coarse/fine focus controls and ergonomic stage design for maximum efficiency and comfort while also providing an extremely stable operating platform.
The MT4310L Series offers an outstanding range of features and optical performance with an emphasis on all newly engineered high performance optics based on Meiji Techno’s ICOS™ Optical System (Infinity Corrected Optical System). The new optics, provide exceptionally bright, crisp, images, with good color rendition and superior flat fields of view. A modular design facilitates attachment of a variety of accessories such as CMOS/CCD video cameras, digital still cameras, and 35mm cameras.
The MT4310L Series Microscopes offer crisp, distortion free, high resolution images in multiple modes of operation. Contrast methods available include: Brightfield and Phase Contrast.
Supplied with:
- Trinocular Head-Siedentopf type, I.P. adjustment 53mm to 75mm, graduated diopter on left eyetube (23.2mm I.D. eyetube); inclined at 30 degrees
- KHW10X Compensating Eyepieces, Field No. 20, Tube O.D. 23.2mm
- Plan Achromat Objective 4X N.A.0.10, W.D. 15.3mm
- Semi Plan Phase 10X Objective N.A.0.25, W.D. 7.3mm
- Plan Semi Apo Phase Objective, 40X N.A.0.65, W.D. 0.5mm
- Centering Telescope, 23.2mm O.D.
- Zernike Phase Condenser with centerable phase annuli for 20X, 20X, 40X, 100X with bright field position, dark-field stop for 40X objective
- Green Filter, Clear, 44.0mm Diameter, unmounted
- Ceramic coated flat-top stage, 170mm x 140mm, 80mm x 52mm
- Attachable finger assembly for stage
- 3W LED, 5500K color temperature
- Spare Fuse
- Removable AC Electric cord with plug
- Dust Cover
- Instruction Manual
- Limited Lifetime Warranty Card
